Product Description

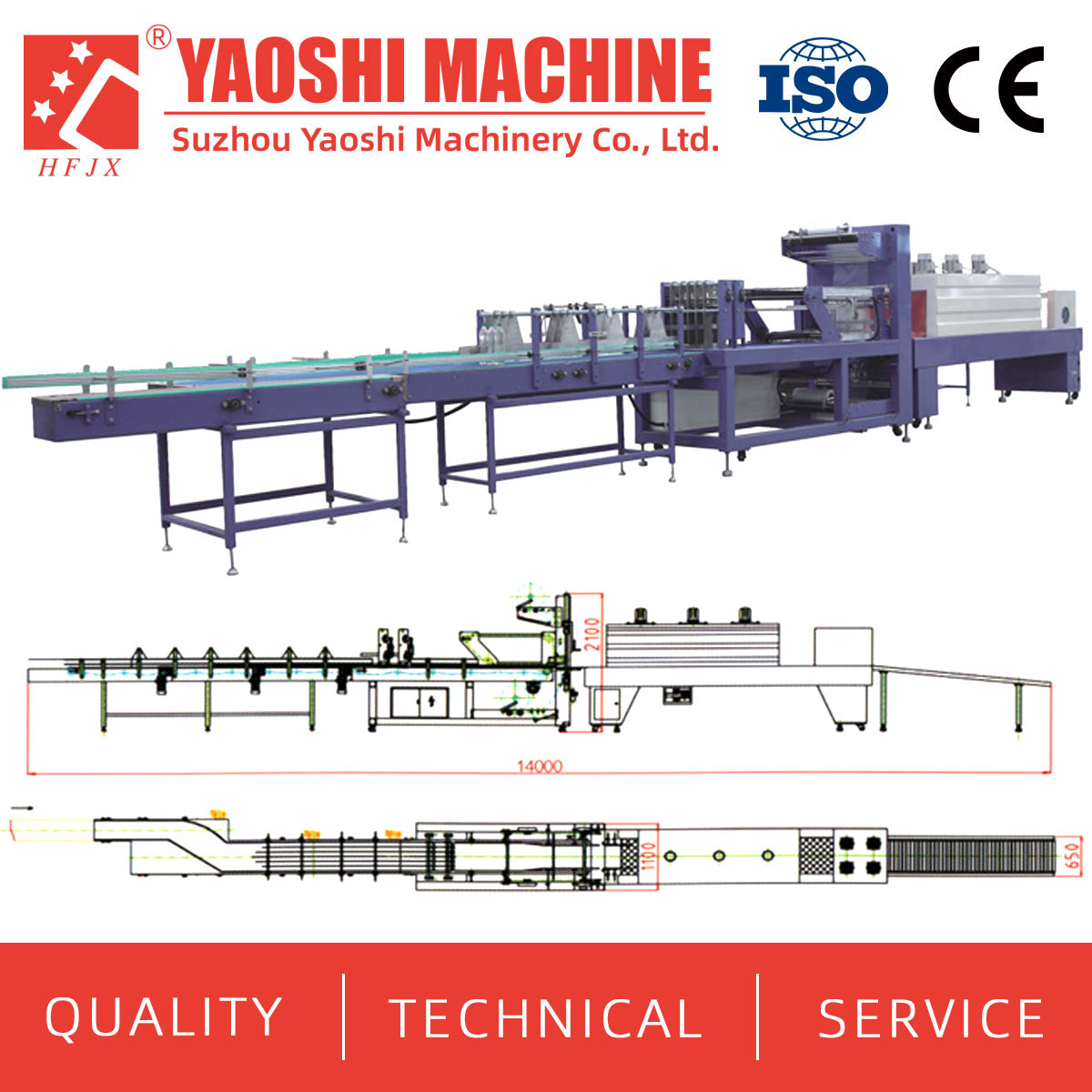

Automatic PE film shrink packaging machine is suitable for packaging cans, bottles, etc., with or without chassis, and can be used with PE shrink tunnel. The machine adopts German advanced technology and internationally renowned brands, with stable performance and long service life.
Automatic PE film shrink packaging machine is suitable for packaging cans, bottles, etc., with or without chassis, and can be used with PE shrink tunnel. The machine adopts German advanced technology and internationally renowned brands, with stable performance and long service life.
Designed for high-speed packaging requirements of bottled drinking water (purified water, beverages, juice, milk, etc.). When conveying bottles, it can automatically sort and film wrap the bottles, saving time and improving work efficiency. PLC control, automatic work processing. Constant temperature cutting blade, surface sprayed with Teflon, stable sealing. Use touch screen to ensure easy operation. Suitable for different bottle sizes and packaging types, no tray packaging. This type of shrink packaging machine is the best choice for medium capacity, simple operation and maintenance.
Specifications
Automatic PE film shrink packaging machine is suitable for packaging cans, bottles, etc., with or without chassis, and can be used with PE shrink tunnel. The machine adopts German advanced technology and internationally renowned brands, with stable performance and long service life.
Automatic PE film shrink packaging machine is suitable for packaging cans, bottles, etc., with or without chassis, and can be used with PE shrink tunnel. The machine adopts German advanced technology and internationally renowned brands, with stable performance and long service life.
Designed for high-speed packaging requirements of bottled drinking water (purified water, beverages, juice, milk, etc.). When conveying bottles, it can automatically sort and film wrap the bottles, saving time and improving work efficiency. PLC control, automatic work processing. Constant temperature cutting blade, surface sprayed with Teflon, stable sealing. Use touch screen to ensure easy operation. Suitable for different bottle sizes and packaging types, no tray packaging. This type of shrink packaging machine is the best choice for medium capacity, simple operation and maintenance.
Main Features of Automatic Linear Type Film Shrink Wrapping Packing Machine
Applying imported PLC procedure automatic control, stable performance, and accurate control.
Enjoying full-automatic function of feeding, tube management, shrinkage, and cooling shape-fixing flow.
Film transportation is adopted with sensor switch control, adjustable deliver film lentgh, and can reduce wastage.
Elector motor is adopted with imported transducer to control, realizing unlimited speed regulating.
Advanced spiral wind circulating structure, three-layer insulation treatment, and enrgy conservation.
Reinforced cooling shage-fixing channel to ensure packaging products shape quickly and convenient storage and transportation.
1. Upper and lower magnetic switches prevent sealing errors and protect the safety of operators.
2. The feeding position is adjustable and can be adjusted according to the size of the packaged product.
3. Schneider PLC, Schneider AC contactor, intelligent temperature controller, stable performance.
4. High-power conveying motor, stepless speed regulation, smooth feeding.
5. Upper and lower high-power fan system, good one-time shrinking effect.
6. Super cooling system, cools the packaged goods to make the package perfectly formed.
7. The tunnel size can be customized according to your requirements.
Technical Parameter
| No. | Item | Parameter Data |
| 1 | Equipment Model | WP-350A |
| 2 | Equipment Overall Size | L12000×W1100×H2100mm |
| 3 | Size-Host Machine | 3400×1250×2350mm |
| 4 | Size-Shrink Tunnel | 4200×1100×1700mm |
| 5 | Size: Conveyor | 5200×1300×950mm |
| 6 | Maximum Packages size: | L2400×W650×H450mm |
| 7 | Material of shrink film | PE |
| 8 | Thickness of shrink film | 0.03-0.15mm |
| 9 | Temperature of shrink tunnel | 160 – 260° |
| 10 | Production capacity | 16-20 bags/minute |
| 11 | Equipment Power | 30Kw |
| 12 | Actual Power Consumption | 28Kw/Hour |
| 13 | Voltage | 380V/50-60HZ |
| 14 | Weight | 2500Kg |
| 15 | Air Pressure | 0.6-0.8mpa |
| 16 | Working Noise | ≤65db |
| 17 | Width of conveyor belt | 541mm |
| 18 | Draught fan | 1.1KW (3 sets); 60W (6sets) |
About Suzhou Yaoshi Machinery Co., Ltd.'s factory
After Sales Service
1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.
