Product Description

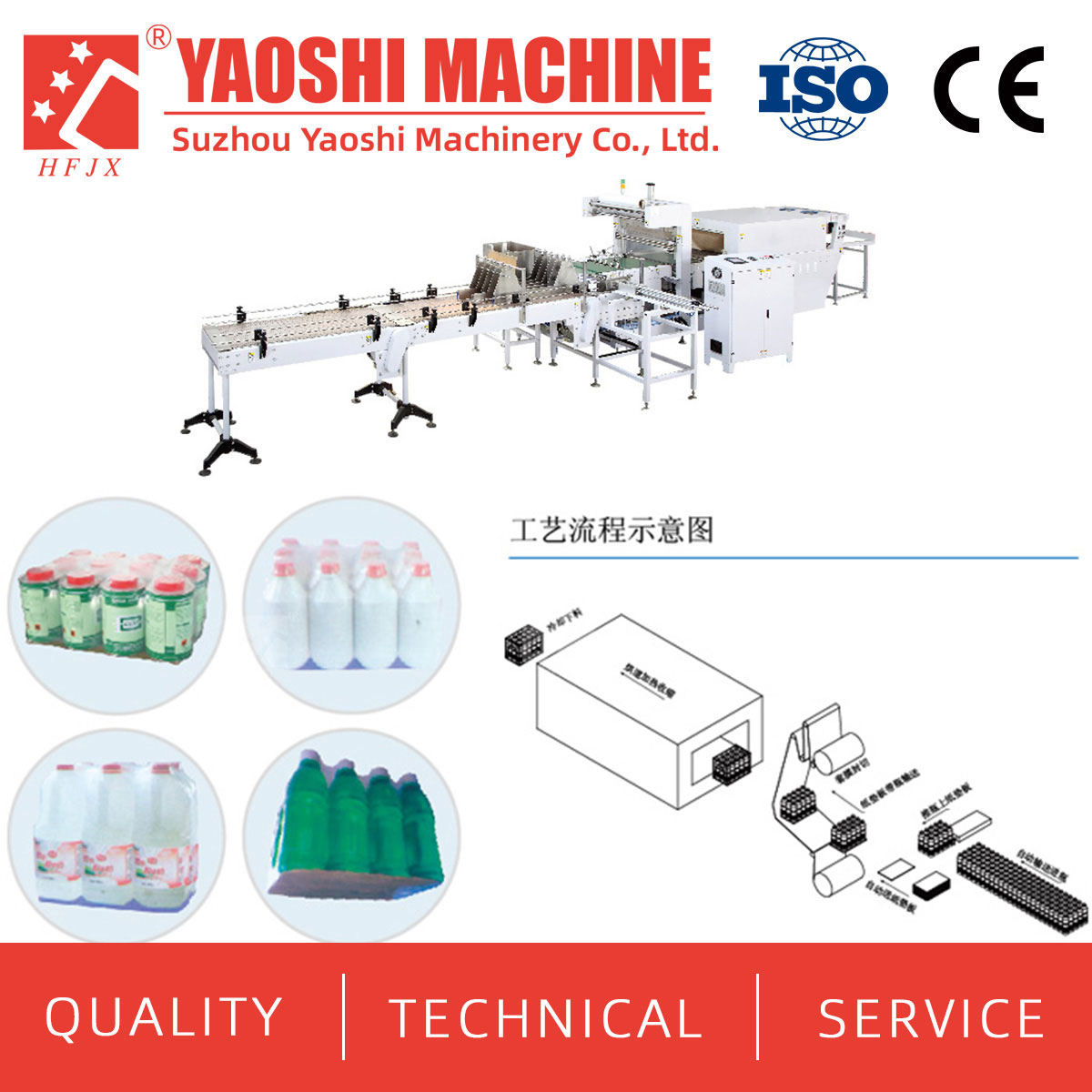

1. Bottles coming out of the production line directly enter the buffer conveyor.
2. The buffer part places a certain number of bottles, and then the grouping and arranging mechanism divides them into the required packaging specifications.
3. The cardboard is placed at a specific point through the automatic cardboard arranging mechanism, and the packaging specifications are formulated according to the packaging combination through conveying and placed on the cardboard.
4. Then, the film is covered, sealed, pressed, shrunk, and cooled through conveying.
Specifications
Main Features of Automatic Pe Film Packing Machine With Tray
1. The equipment adopts a straight-line optimized shape design, beautiful shape, and reduced floor space.
2. The main body of the equipment is mainly made of high-quality carbon steel, and some are made of stainless steel.
3. The electrical system adopts imported PLC programmable control, the transmission process adopts imported inverters, and the whole machine operation process adopts imported touch screen control, so that the equipment action control enters an intelligent state, the action is monitored, and various alarms and states are displayed, making the equipment operation safer and more reliable, and can be single-step action, easy to debug and maintain. The equipment is equipped with automatic alarm devices and special protection functions to further improve the safety and reliability of the equipment.
4. Pneumatic components are selected from Taiwanese brands.
5. The robot is used for automatic cardboard feeding.
6. The main electrical components are all imported or domestic high-quality brands.
7. Traction film feeding: the film feeding speed is adjusted automatically.
Heat shrink machine:which is corrosion-resistant, stable, adjustable speed, PLC control, adjustable temperature, and unique hot air treatment to make the packaging shrink beautiful.
Technical Parameter
| Power supply | 3PH 380V/50HZ |
| Air source (MPa) | ≥0.5 |
| Equipment dimensions (mm) | L9700×W2480×H1950 |
| Maximum package size (mm) | L450×W400×H320 |
| Packaging efficiency (package/minute) | 6月10日 |
| Maximum sealing length (mm) | 700 |
| Packaging machine power/shrinking machine power (KW) | 3.6/22-28 |
| Working surface height (mm) | 850±30 |
| Applicable film | PE |
| Applicable cardboard thickness (mm) | ≥2 |
About Suzhou Yaoshi Machinery Co., Ltd.'s factory
After Sales Service
1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.
