Product Description

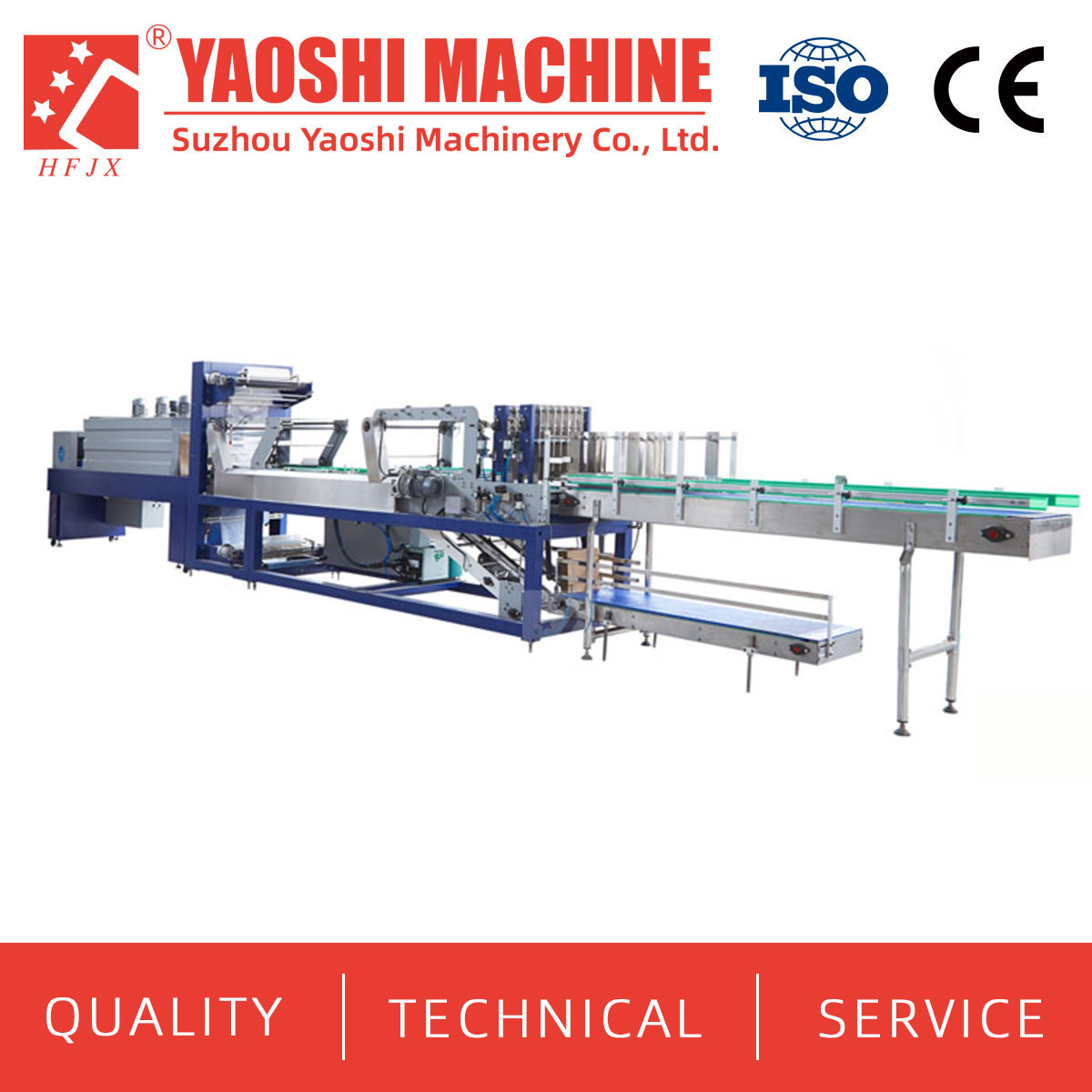

Automatic PE film shrink packaging machine is suitable for packaging cans, bottles, etc., with or without chassis, and can be used with PE shrink tunnel. The machine adopts German advanced technology and internationally renowned brands, with stable performance and long service life.
Automatic PE film shrink packaging machine is suitable for packaging cans, bottles, etc., with or without chassis, and can be used with PE shrink tunnel. The machine adopts German advanced technology and internationally renowned brands, with stable performance and long service life.
Designed for high-speed packaging requirements of bottled drinking water (purified water, beverages, juice, milk, etc.). When conveying bottles, it can automatically sort and film wrap the bottles, saving time and improving work efficiency. PLC control, automatic work processing. Constant temperature cutting blade, surface sprayed with Teflon, stable sealing. Use touch screen to ensure easy operation. Suitable for different bottle sizes and packaging types, no tray packaging. This type of shrink packaging machine is the best choice for medium capacity, simple operation and maintenance.
Specifications

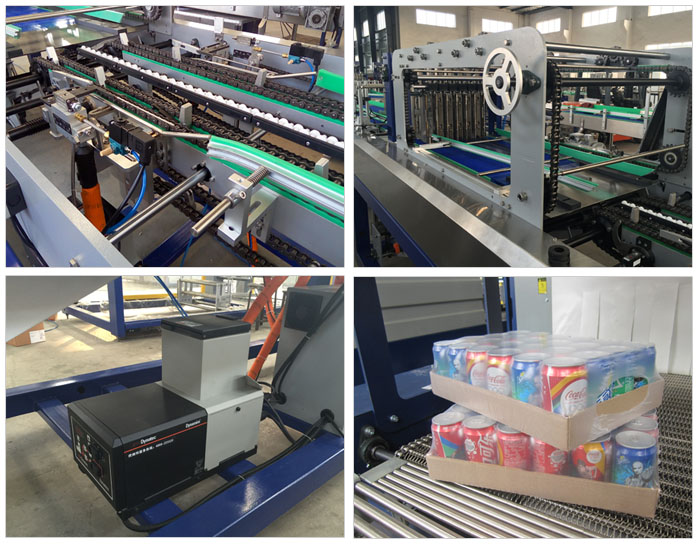

1. Bottles coming out of the production line directly enter the buffer conveyor.
2. A certain number of bottles are placed in the buffer part, and then the grouping and sorting mechanism divides them into the required packaging specifications.
3. The cardboard is placed at a specific point through the automatic cardboard sorting mechanism, and the packaging specifications are formulated according to the packaging combination through conveying and placed on the cardboard.
4. Then it is laminated, sealed, pressed, shrunk and cooled through conveying.
Main Features of Automatic Linear Type Film Shrink Wrapping Machine With Half Tray Or Cardboard
1. The equipment adopts a straight-line optimized shape design, beautiful shape, and reduced floor space.
2. The main body of the equipment is mainly made of high-quality carbon steel, and some are made of stainless steel.
3. The electrical system adopts imported PLC programmable control, the transmission process adopts imported inverters, and the whole machine operation process adopts imported touch screen control, so that the equipment action control enters an intelligent state, the action is monitored, and various alarms and states are displayed, making the equipment operation safer and more reliable, and can be single-step action, easy to debug and maintain. The equipment is equipped with automatic alarm devices and special protection functions to further improve the safety and reliability of the equipment.
4. Pneumatic components are selected from Taiwanese brands.
5. The robot is used for automatic cardboard feeding.
6. The main electrical components are all imported or domestic high-quality brands.
7. Traction film feeding: the film feeding speed is adjusted automatically.
Heat shrink machine:which is corrosion-resistant, stable, adjustable speed, PLC control, adjustable temperature, and unique hot air treatment to make the packaging shrink beautiful.
Technical Parameter
| Max packing size | L600×W400×H350mm | |
| 2 | Mini packing size | L210×W140×H100mm |
| 3 | Material of shrink film | PE,PVC |
| 4 | Thickness of shrink film | 0.03-0.15mm Max width 600mm |
| 5 | Highest temperature of the heat shrink furnace | 160-260。 (Can adjust freewill) |
| 6 | Max Capacity | 5 packs/min |
| 7 | Packing/Shrinking power consumption | 6/22-28 kw |
| 8 | Working pressure | 0.6-0.8 Mpa |
| 9 | Air consumption | 0.3m3/min |
| 10 | Weight | 2000kg |
| 12 | Dimension (mm) | L10000×W2480×H1950 |
About Suzhou Yaoshi Machinery Co., Ltd.'s factory
After Sales Service
1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.
