Product Description

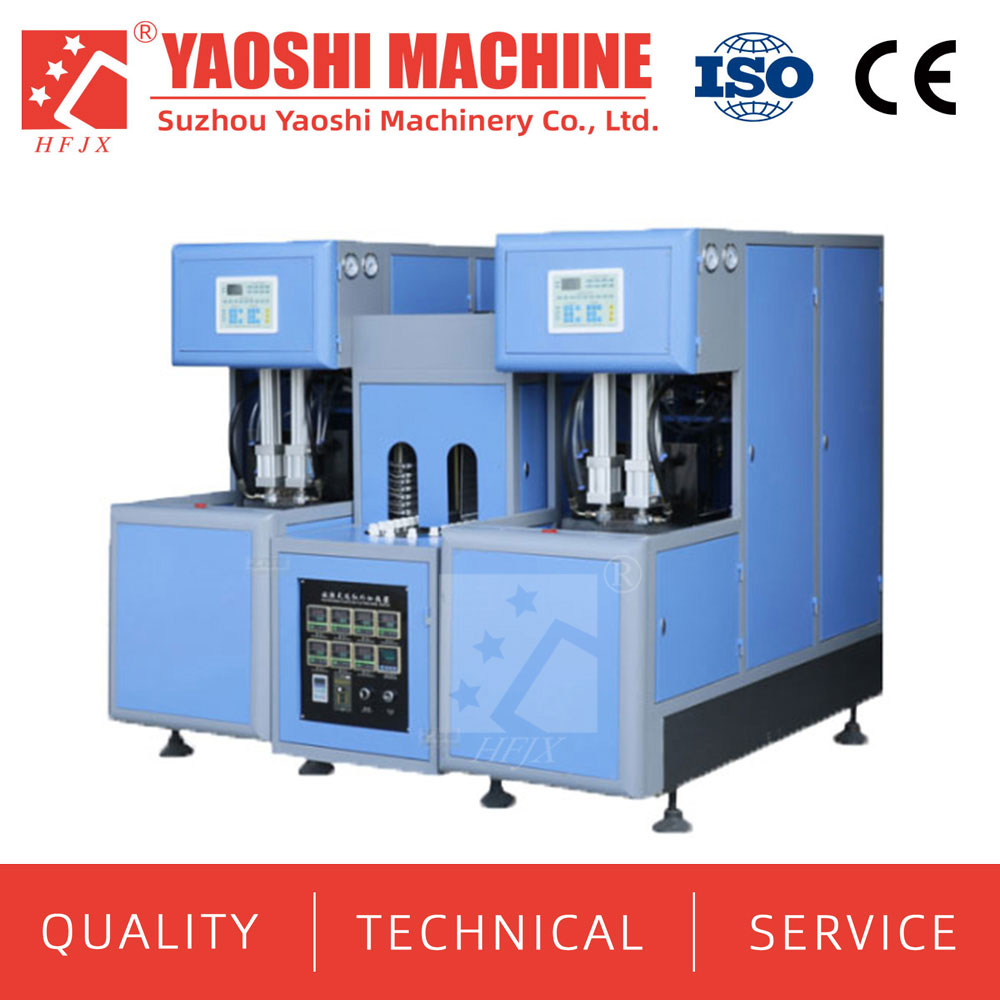

Semi-automatic bottle blowing machine is suitable for producing 100-2000ml PET plastic containers and bottles. It is widely used in the production of carbonated bottles, mineral water bottles, carbonated beverage bottles, pesticide bottles, oil bottles, cosmetics, wide-mouth bottles, etc.
It adopts double crank mold adjustment, heavy-duty clamping, stable and fast, and adopts infrared oven to heat the preform, and the preform rotates and heats evenly.
The air circuit system is divided into two parts: pneumatic part and bottle blowing part to meet different action and bottle blowing requirements. It can provide sufficient and stable high pressure for blowing large special-shaped bottles.
The machine is also equipped with a muffler and an oil injection system to lubricate the mechanical part of the machine.
The machine can be operated in stepping mode and semi-automatic mode.
The machine is small in size, low in investment, easy to operate and safe.
Specifications
| Container | Product material | PET |
| Volume | 0.1L-2L | |
| Theoretical output | 1200-1600PCS/H | |
| Preform length | 15mm-350mm | |
| Preform inner diameter | φ5mm-38mm | |
| Moulding | Max.mould plate Dimension(L x W) | 350x380mm |
| Max.mould thickness | 180mm | |
| Clamping force | 45KN | |
| Mould opening stroke | 160mm | |
| Machine size and weight | Main machine (L x W x H) | 160x60x161KM |
| Main machine weight | 500Kg | |
| Heater (L x W x H) | 187x63x145KM | |
| Heater weight | 250Kg | |
| Power | 17.5kw |
High pressure air compressor:
Function: Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure
| Air compressor | Unit | 1.2M3/min 30KG |
| Volume | M3 | 1.2 |
| Pressure | Kg | 30 |
| Speed | r/min | 850 |
| Power | KW | 15 |
| Overall Dimension | mm | 2000*1100*1600 |
| Weight | kg | 620 |
Air Cooling Dryer：
Function :Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.
| Refrigeration Air Dryer | Unit | 2.0M3/min 3.0Mpa |
| Flow capacity | Nm3/min | 2 |
| W.P | Mpa | 3 |
| Inlet Temp. | ℃ | ≤80 |
| Dew point | ℃ | 23 |
| Ambient Temp. | ℃ | ≤38 |
| Power supply | V/HZ | 220/50 |
| Compressor power | Kw | 0.75 |
| Cold Medium | mm | 1050×650×1100 |
| Weight | Kg | 120 |
Air Filter：
Functions: Air filter is to clear up the impurities out of the compressed air, like carbon hydrogen, tiny dust and solid particles.
| Refining-Filter | Unit | 2.0M3/min 30Kg |
| Flow Capacity | M3/Min | 2 |
| Max. work pressure | Mpa | 3 |
| Inlet Temp. | ℃ | ≤50 |
| Cold Medium | mm | 750*350*350 |
| Weight | Kg | 20 |
About Suzhou Yaoshi Machinery Co., Ltd.'s factory
After Sales Service
1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.
