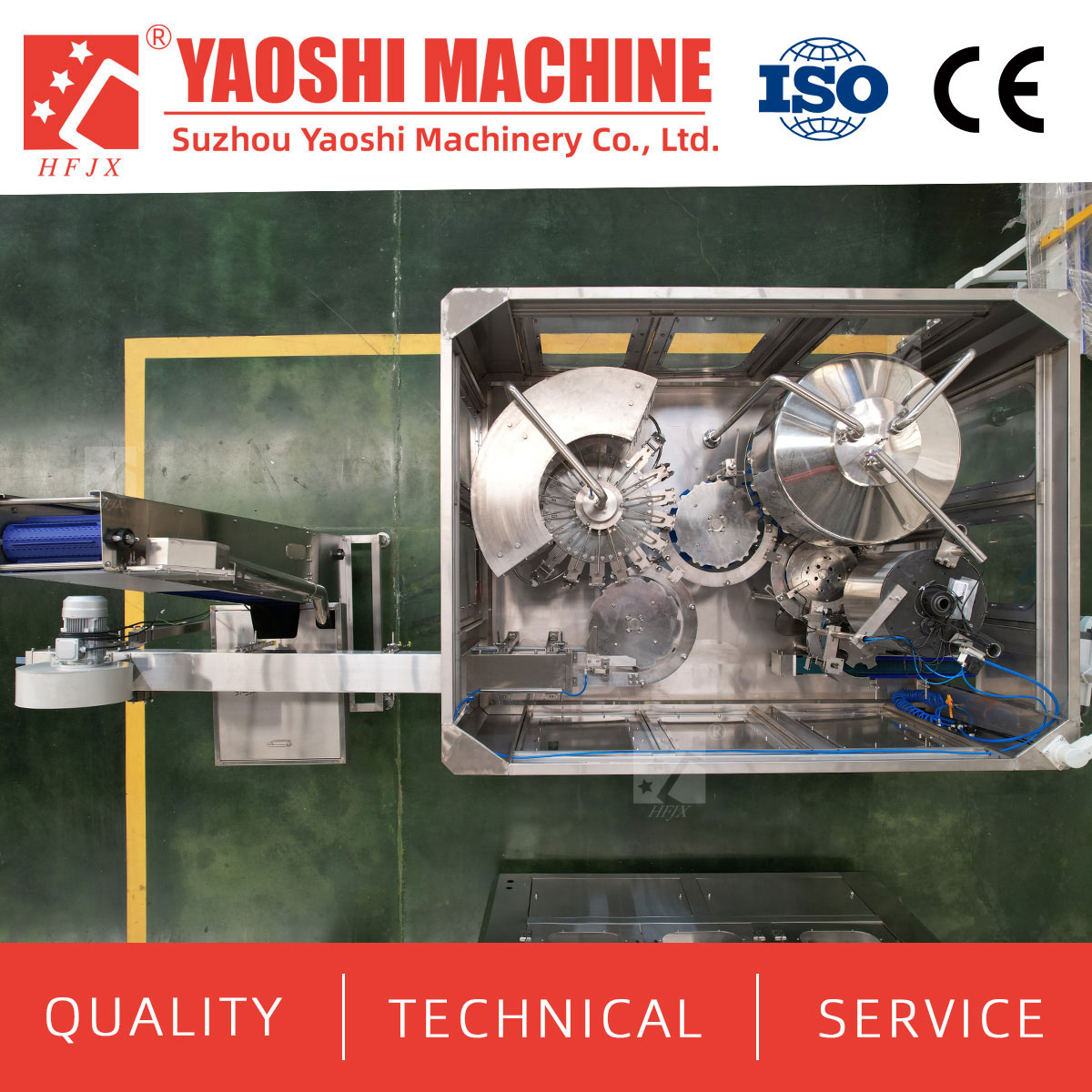

Product Description
Water filing Machine is equipment used in drinking water automatic filing operations, offering efficiency, reliabitity and precision in thepackaging of botle water products suitable for various sizes and capacitiesthe processing including washing filing capping are composecin one body of the machines, the comolete process also can incude cleaning and sterlizaion, Filino&caoping, Labeling, Qually controland oackagino system, The famous brand comoonents and controlsvstem is adopted to run machines automaticaly ensuring efficientprecision,and hygienic packaging of bottled water products
The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet. Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear transmission. The gear transmission system is an interleaved arrangement of steel gears and nylon gears. The output shaft of the main motor is equipped overload protection to secure machine safety.
Specifications
Product Features
1) Compact structure, good shape, easy operation, high automation degree and low labor intensity.
2) Adopts the technology of direct contact air conveyor and bottle inlet poking wheel, instead of ” Feeding screw” And ” Conveyor” ; Thus making it is easy to change the bottle shape.
3) Adopts bottle neck clamping technology which removes the need for changing the height of the bottle; Just change the parts which are relevant to the bottle diameter, such as the arc guide plate and poking wheel.
4) Special stainless steel bottle gripper of rinser does not touch the bottle screw part, thereby avoiding secondary contamination.
5) All parts directly contacting the media adopt food level stainless steel, without dead angles, so they can be cleaned easily.
6) Diaphragm adjustment valve controls the inlet flow rate of liquids, and can keep the slight turbulence of liquids level in the solution barrel and ensure accuracy in filling.
7) Automatically closes feeding valve if there is no bottle on the machine, thus avoiding the loss of aqueous feed.
8) Fills automatically with high speed and accurate control of liquid level.
9) High filling speed and mass flow rate, high precision of filling valve and control of liquids level are accurate and without loss.
10) Equipped with perfect CIP control loop and program and cleaning devices on the spot.
11) The “Capping head” Adopts a magnetic constant-torque device to ensure high capping quality without damage.
12) Adopts efficient cap settling system with perfect cap feeding and protection device.
13) Adopts spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel, which removes the need for adjusting the input height for exchanging bottle models.
14) Equipped with perfect protection system to prevent overload, and protect facilities and operators efficiently.
15) Applying touch screen, it fully realizes the man-machine conversation whereas the status of device running is clear at a glance.
16) The primary electric components such as touch screen, PLC and transducer all adoptwell known import products.
Technical Parameter
| Mode | CXGF8-8-3 | CXGF14-12-5 | CXGF16-16-6 | CXGF18-18-6 | CXGF24-24-8 | CXGF32-32-10 | CXGF40-40-10 | CXGF60-60-15 |
| Capacity BPH | 2000 | 2000-4000 | 4000-6000 | 6000-8000 | 8000-12000 | 13000-18000 | 18000-24000 | 28000-36000 |
| Washing head | 8 | 14 | 16 | 18 | 24 | 32 | 40 | 60 |
| Filling head | 8 | 12 | 16 | 18 | 24 | 32 | 40 | 60 |
| Capping head | 3 | 5 | 6 | 6 | 8 | 10 | 10 | 15 |
| Bottle diameter(mm) | φ50-115 | |||||||
| Bottle height(mm) | 160-320 | |||||||
| Compressed air pressure(mpa) | 0.3-0.7 | |||||||
| Total power(kw) | 3.8 | 4.4 | 4.4 | 4.4 | 5.2 | 6.2 | 9.6 | 12 |
| Size (mm) | 2300*1500*2100 | 2500*1880*2300 | 2600*1900*2300 | 2800*2150*2300 | 3100*2450*2300 | 3880*2800*2500 | 4550*2650*2300 | 5450*3210*2300 |
| Weight (kg) | 2800 | 3200 | 4000 | 4500 | 6500 | 7500 | 8500 | 12000 |
Main configuration
| No | Name | Brand |
| 1 | Motor | China |
| 2 | Motor in cap sorter | China |
| 3 | Rinsing pump | Nanfang, Hangzhou |
| 4 | Magnetic valve | Airtac, Taiwan |
| 5 | Cylinder | Airtac, Taiwan |
| 6 | Air parts | Airtac, Taiwan |
| 7 | Frequency convertor | Siemens |
| 8 | Transformer | China |
| 9 | Photoelectric switch | AUTONICKS |
| 10 | Proximity switch | AUTONICKS |
| 11 | PLC | Siemens |
| 12 | Touch screen | Siemens |
| 13 | Pnuemtic parts | Airtac, Taiwan |
| 14 | AC contactor | Schneider |
| 15 | Microrelay | Schneider |
Flow chart (bottling production line)
A) Bottling production line
PET resin–injection molding machine–blowing machine–PET bottle
B) Water treatment system
Raw water–water pump–quartz sand filter–carbon filter–water softener–reverse osmosis–ultraviolet sterilizer–ozone generator–finished product water tank
C) Filling and packaging part
Blowing machine/bottle unscrambler–air conveyor–washing, filling and capping three-in-one machine–light inspection machine–bottle dryer–date printer–labeling machine–packaging machine–finished product
About Suzhou Yaoshi Machinery Co., Ltd.'s factory
More Details

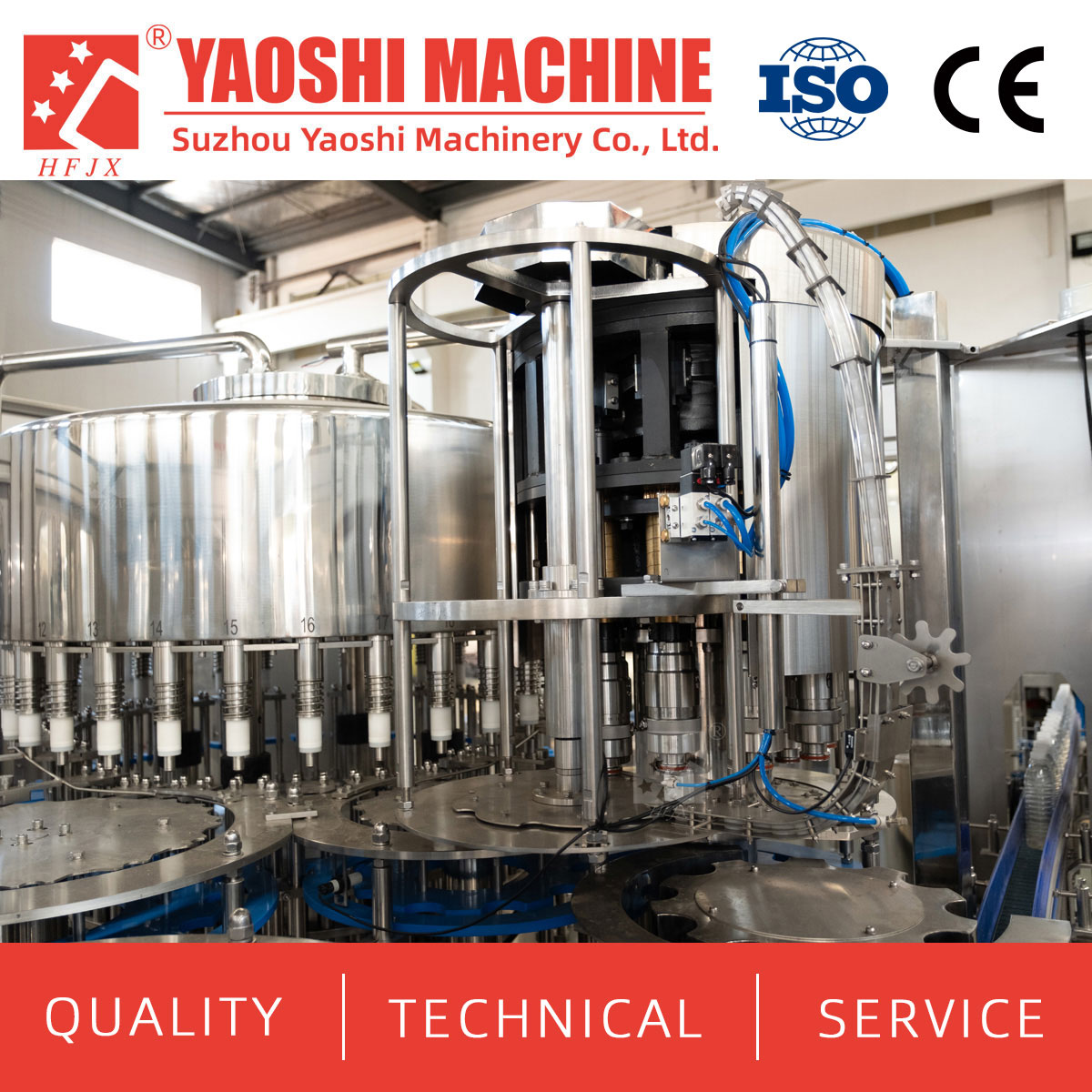

CXGF24-24-8 water Filling machine

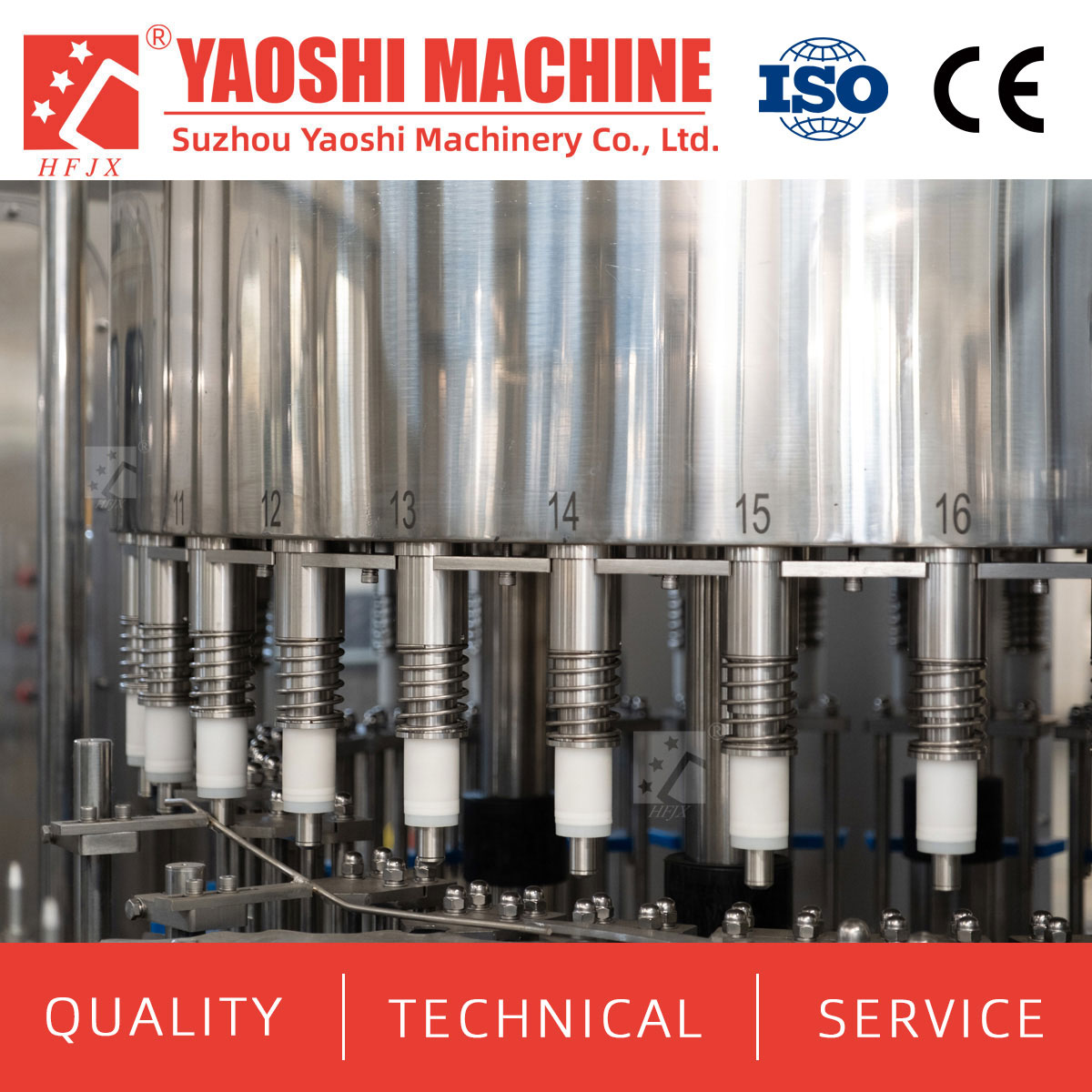

cxgf32-32-8 Filling valve

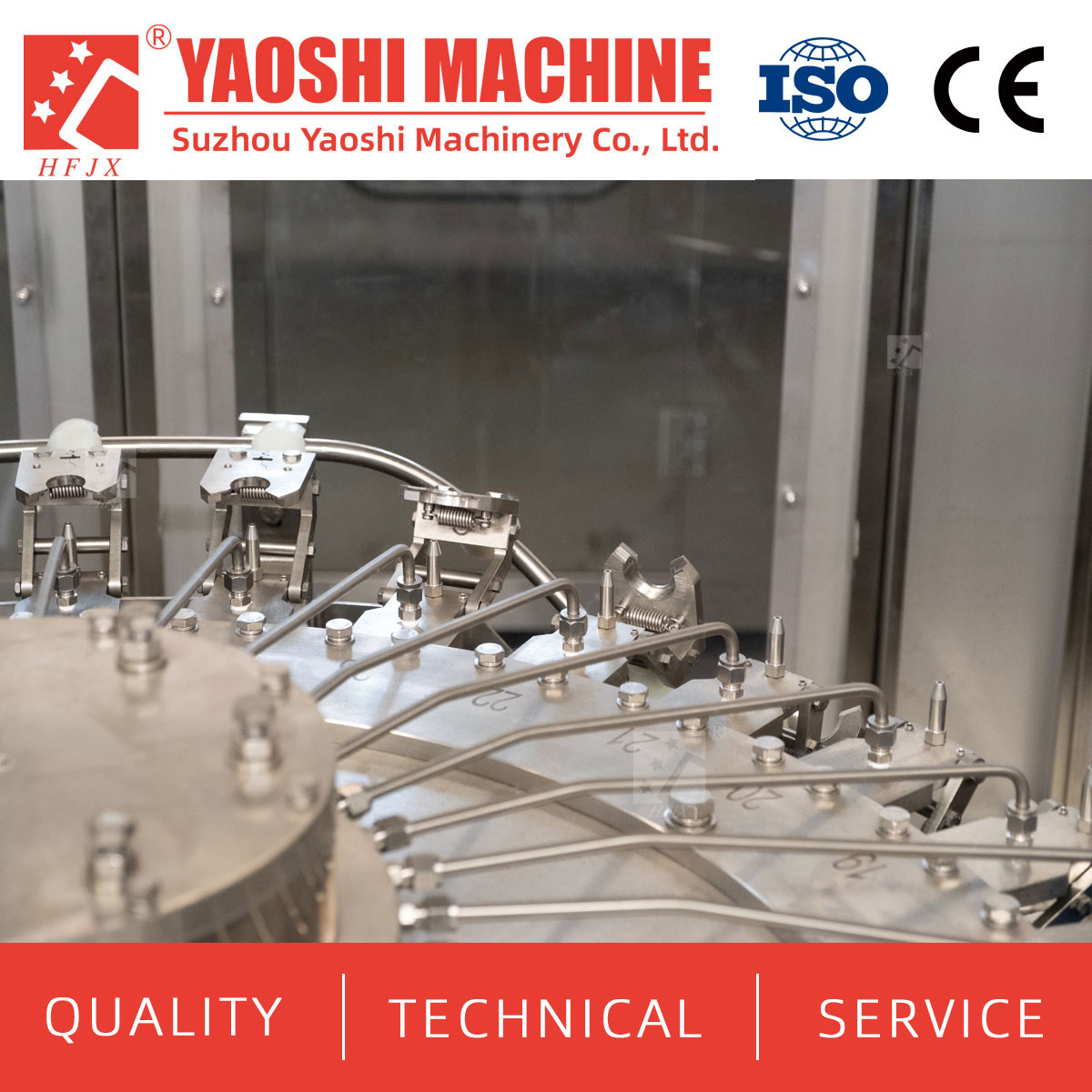

cxgf32-32-8 Rinse bottle valve

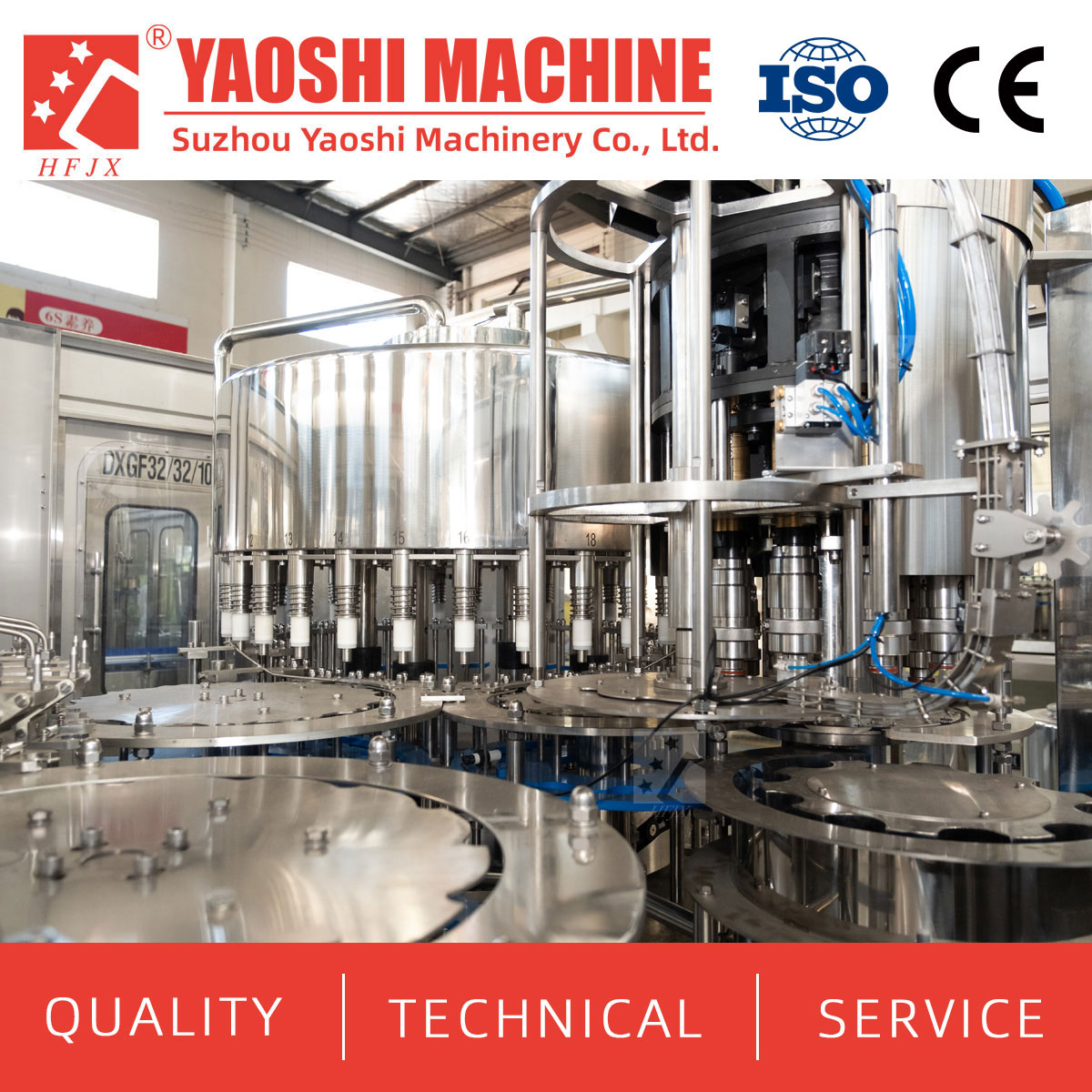

cxgf32-32-8 Filling machine tanks and valves
cxgf32-32-8 Capping head
-
