Product Description
Our water bottle making machine is designed for the production of plastic bottles and containers for water, beverages, cleaning products, wine, medical products, pesticides and chemical products.
1.Adopt advanced PLC control system with stable performance;
2.Adopt infrared lamp heating with strong penetration, self-rotation heating of preform, orbital revolution of guide rail, uniform heating, fast and reliable;
3. The width and height of the lamp and reflector in the heating area are adjustable to adapt to the heating of different structures, and an automatic heating device is provided to ensure the constant temperature of the drying tunnel;
4. Each mechanical action is equipped with a safety self-locking device. When a certain process fails, the program will automatically switch to a safe state;
5. Each action is driven by a servo system: stretching servo, shift servo, mold cavity servo, embryo cavity servo, without using traditional cylinders, with the advantages of energy saving, stability, and precise control of each part of the action;
6. Adopt high-voltage double The crank arm connecting rod clamps the mold, and the clamping force is strong;
7. The machine adopts a four-template structure, double opening and double closing, which saves clamping time and greatly improves the machine output. This structure is independently developed by our company and has a domestic design patent;
8. The gear racks are all helical gear grinding, six times vacuum quenching, six times high-precision grinding, hardness up to 62, high hardness, high-precision drive machine stretch transmission;
9. The operation mode is manual and automatic;
10. Unique valve position design, the action valves of each part of the bottle blowing valve are all domestic well-known brands or foreign imported brands, the quality is safe and reliable, and the gas path is clear at a glance;
11. The production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance, safety and reliability.
12. The cooling system achieves an ideal cooling effect; Easy to install and start; 13. The scrap rate of finished bottles is less than 0.2%
Specifications
Product Features
Reduces operating costs, achieving over 30% energy savings compared to traditional blow molding machines.
Ensures production stability.
Easy to operate and maintain, reducing labor costs by over 50%.
PET Bottle Blowing Machine Description:
1.Stable performance with Advanced PLC
2.Conveying performs automatically with conveyor.
3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4.High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area,and eternal temperature in the preheater with an automatic thermostatic apparatus.
5.Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the device,double protect the screw neck
6.Each mechanical action has safety self-locking device,whe a process fails, the program will automatically switch to the security status.
7.Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.
8.Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.
9.Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
10.Along with remotemaintenance systems,remote inspection maintenance,solve the troubles for you.
11.Low rejection rete: less than 0.2 percent.
PET Bottle Blowing Machine Advantages:
1) Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.
2)Small performs distance heating system
Heater distance in the heating oven is reduced, compared with the conventional heating oven it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
3)Efficient and soft perform inlet system
By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protected.
Yaoshi PET blow molding machines adhere to international standards in the configuration of core components, select the world's top industrial brands, and create high-performance production equipment.
We use professional cylinders and solenoid valves, combined with high-pressure blow molding valve groups, to build a stable and reliable pneumatic system; the control system uses servo drives and programmable motion controllers to achieve precise motion control and human-computer interaction.
This pursuit of excellence in each functional module enables the equipment to achieve high-speed production continuously and stably, while reducing energy consumption by more than 30%.
All components undergo rigorous matching tests and performance optimization to ensure that the entire system is coordinated and maximized.
Suzhou Yaoshi has always believed that only by using world-class high-quality components can we create high-performance equipment that truly meets the needs of modern production.
Main configuration
| Bottle blowing machine | |||
| Specification | Unit | SF-4000 | |
| No. of Cavity | cav. | 4 | |
| Cavity pitch | mm | 114.3 | |
| Max. capacity | ml | 2000 | |
| Heating pitch | mm | 114.3 | |
| Preform holder | pcs | 94 | |
| Preform neck(inner dia.) | mm | 26-98 | |
| Preform height(max) | mm | 160 | |
| Bottle diameter(max.) | mm | 100 | |
| Bottle height(max) | mm | 360 | |
| Heating ovens | unit | 5 | |
| Infrared lamps | pcs | 40 | |
| Max. heating power | kw | 120 | |
| Specified power consumption | kw | 120 | |
| Voltage | V | 380V(50Hz) | |
| Weight | 5000(kg) | size | 4.9*1.9*2.2（m） |
| Bottle blowing machine | |||
| Specification | Unit | SF-2000 | |
| No. of Cavity | cav. | 2 | |
| Cavity pitch | mm | 120 | |
| Heating pitch | mm | 120 | |
| Preform holder | pcs | 54 | |
| Preform neck(inner dia.) | mm | 26-98 | |
| Preform height(max) | mm | 160 | |
| Bottle diameter(max.) | mm | 100 | |
| Bottle height(max) | mm | 380 | |
| Heating ovens | unit | 4 | |
| Infrared lamps | pcs | 32 | |
| Max. heating power | kw | 64 | |
| Specified power consumption | kw | 64 | |
| Voltage | V | 380V(50Hz) | |
| Weight | 4500(kg) | size | 3.4*2.1*2.2（m） |
| Description | units | parameters | |
| Main machine parameters | cavity | cavity | 6 |
| Heating distance | mm | 76 | |
| Bottle spacing | mm | 76 | |
| Preform NO. | pcs | 114 | |
| Product parameters | weight | g | 14 |
| Maximum bottle capacity | ml | 600 | |
| Maximum bottle height | mm | 240 | |
| Maximum bottle diameter | mm | 68 | |
| Maximum preform height | mm | 100 | |
| Tooth outer diameter | mm | 18-38 | |
| Theoretical yield | B.P.H | 9000 | |
| Electrical parameters | Heating light box | units | 6 |
| lamps NO. | pcs | 36 | |
| Installed power | KW | 72 | |
| Actual power usage | KW | 35 | |
| Gas source parameters | High pressure gas consumption | m³ | 6 |
| Low pressure gas consumption | m³ | 0 | |
| Cooling machine | HP | 8P | |
| Machine weight | kg | 6500 | |
About Suzhou Yaoshi Machinery Co., Ltd.'s factory
More Details

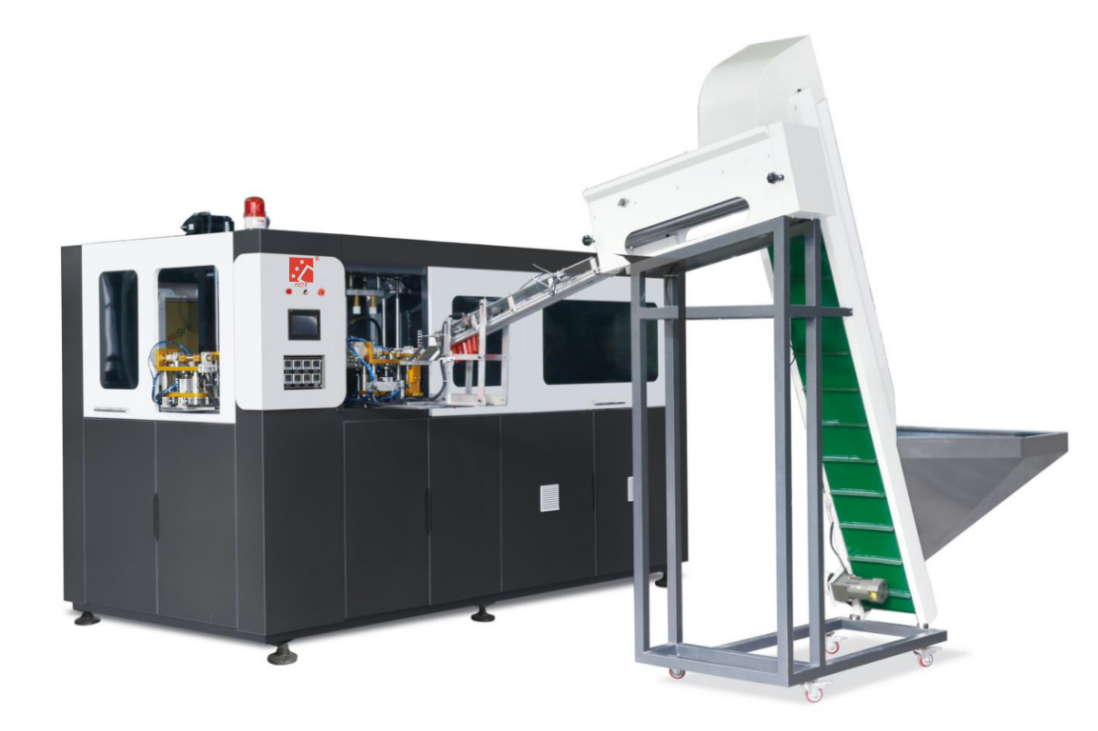

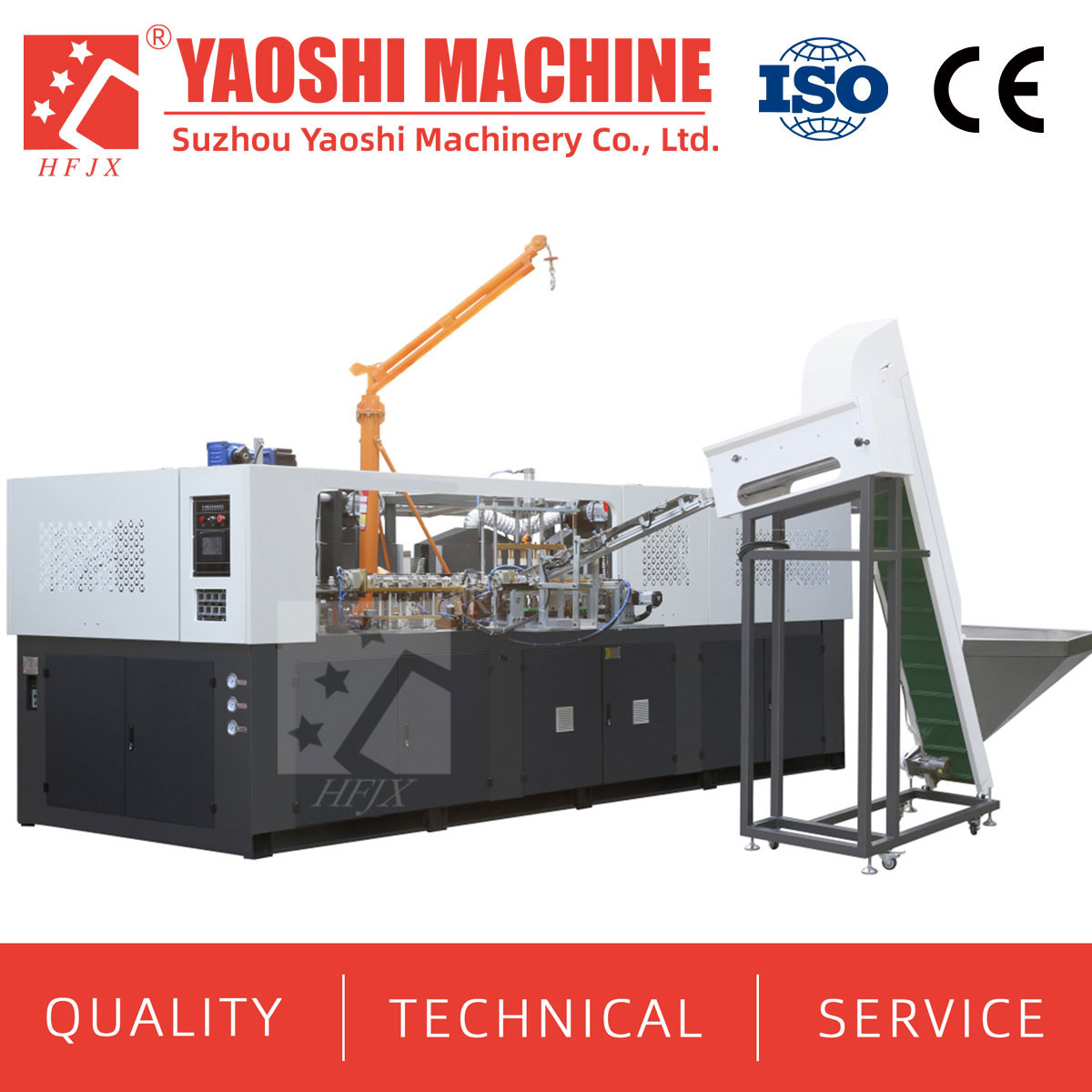

PET Bottle Blowing machine
PET Bottle making machine

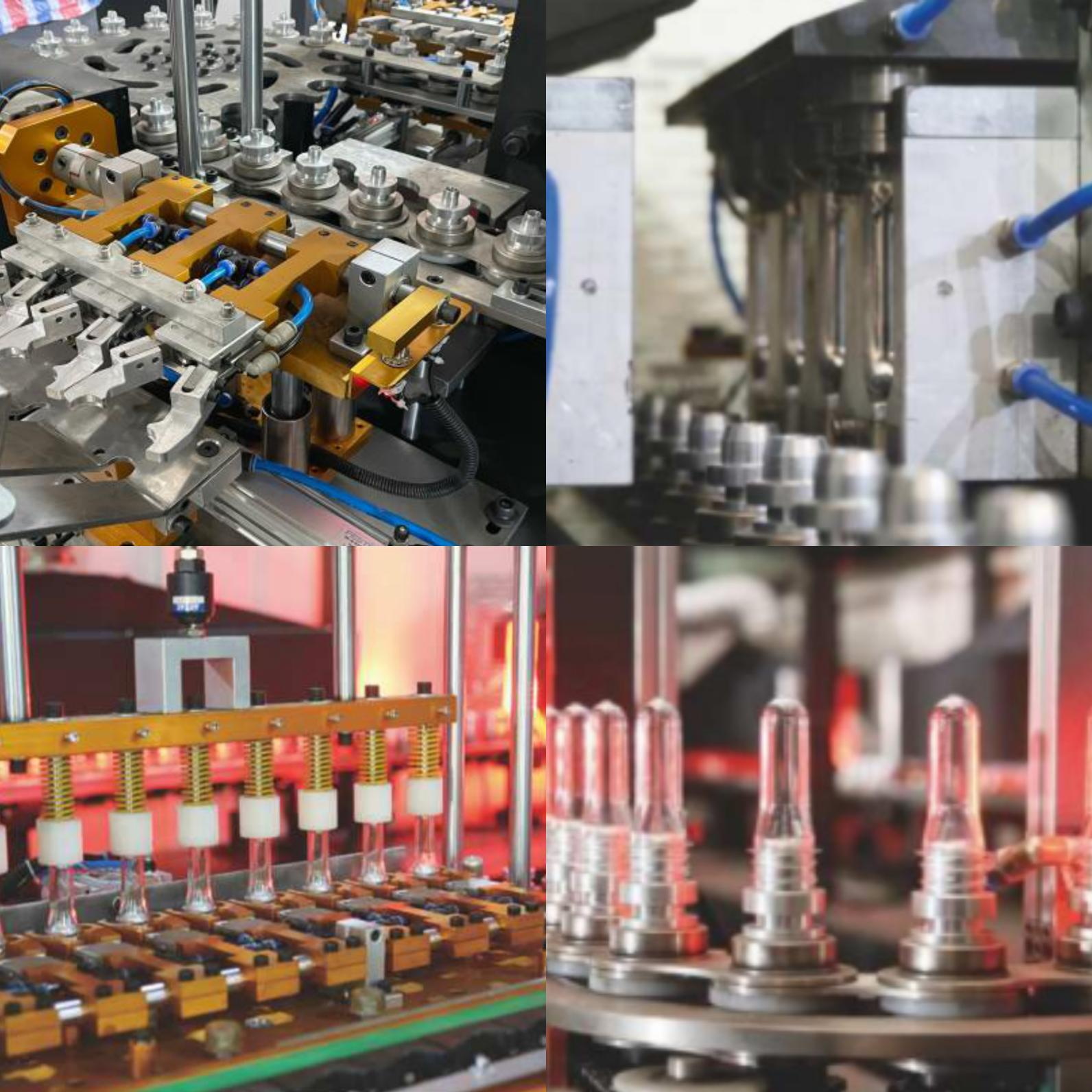

PET Bottle Blow Molding Machine Heating Preforms
PET Bottle Heating
PET Bottle Blow Molding Machine Output
PET Blow Molding Machine Servo
PET Bottle making machine
PET bottle blowing machine mold opening and closing
PET Blowing Machine Mould
-
Q: Are you a trading company or a manufacturer?
A: We are a direct-operated factory located in Zhangjiagang City so we can provide you with high-quality machines at a reasonable price, welcome to visit us.
-
Q: Are all your products produced by yourself or compressed by purchasing other products?
A: We have independent R&D and production teams focusing on manufacturing machines, and we have our own processing center, and all products are manufactured by our technical team.
-
Q: What is the capacity of your factory?
A: About 100+ production lines per year.
-
Q: How about spare parts?
A: We will send one year’s worth of easily damaged spare parts with the machine and ship them together. During the warranty period, we will provide spare parts at a cost including freight.
-
Q: How long does it take to install?
A: According to your machine order, we will send one or two engineers to your factory, which takes about 10 days to 25 days.
-
Q: How to install the machine after it arrives?
A: We will send engineers to your factory to install the machine and train your employees how to operate the machine.
-
Q: When can I get the machine after payment?
A: Usually the production time is about 30-60 days, depending on the type of machine you ordered. The shipping time is subject to your port of destination.
-
Q: If we buy your machine, what is your guarantee or warranty on the quality?
A: We provide you with high-quality machines with a 1-year warranty and lifetime technical support.
