Product Description
Single Cavity Semi-Automatic 20L 5 Gallon PET Water Bottle Blow Molding Machine, offering excellent quality and affordable price. Designed specifically for the production of 20L (5 Gallon) PET water bottles. With its single cavity configuration, it provides precise and efficient molding for large-volume containers. Combining simplicity and functionality, this semi-automatic machine is easy to operate and maintain. It features a user-friendly interface that enables the operator to control and adjust a variety of parameters, ensuring optimal production results. Equipped with a powerful heating system, it ensures even heating distribution, guaranteeing consistent wall thickness and high-quality bottle production. The machine’s reliable pre-blow and high-pressure blow molding processes allow for precise molding, minimizing material waste. One of the main advantages of this machine is its competitive price, making it an ideal choice for businesses looking for a cost-effective solution. This machine offers excellent value for money without compromising on performance and durability. In conclusion, the Single Cavity Semi-Automatic 20L 5 Gallon PET Water Bottle Blow Molding Machine is a reliable and affordable choice for the production of large-volume PET water bottles. Investing in this machine can increase your production capacity and meet the growing demand for 5-gallon water bottles in the market.
Specifications
| TYPE | ITEM | UNIT | TECHINICAL DATA |
| LAMP COVER | Product material | PET | |
| container volume | Dia | Φ270mm max | |
| Max volume of product | L | 25 | |
| theoretical output | pcs/hr | 80-100pcs | |
| MOULDING | max.mould plate dimension(W*H)最大模板尺寸 | mm | 450 *550 |
| max thickness of mould最大模具厚度 | mm | 280-400 | |
| clamping force | KN | 220 | |
| mould opening stroke开模行程 | mm | 350 | |
| air compressor | air compressor | M3 /Mpa | ≥1.2/3.0*1set |
| air pressure for blowing | KW | 11 | |
| low pressure compressor | M3 /Mpa kw | ≥0.8/1.25*1set 7.5 | |
| Air cooling dryer | M3 /Mpa kw | ≥1.0/30*1set | |
| 1.5 | |||
| Precision air filters | M3 /Mpa | ≥1.0/30*2set | |
| main machine electricity | power | KW | 1.5/35 |
| voltage/frequency | V/HZ | 380/240/110/50-60 (3-phase) | |
| machine size and weight | main machine(L*W*H) | M | 2.3*0.74*2.0 |
| main machine weight | T | 1.1 | |
| heater(L*W*H) | M | 2.75*0.65*1.66 | |
| heater weight | T | 0.62 |
The semi-automatic bottle blowing machine adopts microcomputer control, and the technical parameters are more accurately controlled. The PET bottle blowing machine is easy and safe to operate, and only one person is required to operate it, and no special training is required. The semi-automatic PET bottle blowing machine is suitable for the blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles, and cosmetic bottles, and is suitable for small beverage companies and daily chemical product companies. It adopts infrared lamp heating, which has strong penetration, and the preform rotates and rotates on the track to heat evenly, quickly and reliably; the width and height of the heating lamp and reflector can be adjusted to adapt to the heating of preforms with different structures, and it is equipped with an automatic temperature removal device to ensure the constant temperature of the oven. The specially designed high-rigidity composite mold structure has a wide applicability and is suitable for various types of mold thicknesses. It is easy to adjust, energy-saving and gas-saving, requires less gas, has a precision polished spindle, is equipped with a photoelectric sensor, has low noise, quick response, long working time, stable performance, and ensures smooth operation. The bottle blowing machine adopts an advanced microcomputer PLC control system with stable performance. It has manual and fully automatic types.
About Suzhou Yaoshi Machinery Co., Ltd.'s factory
After Sales Service
1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.
More Details

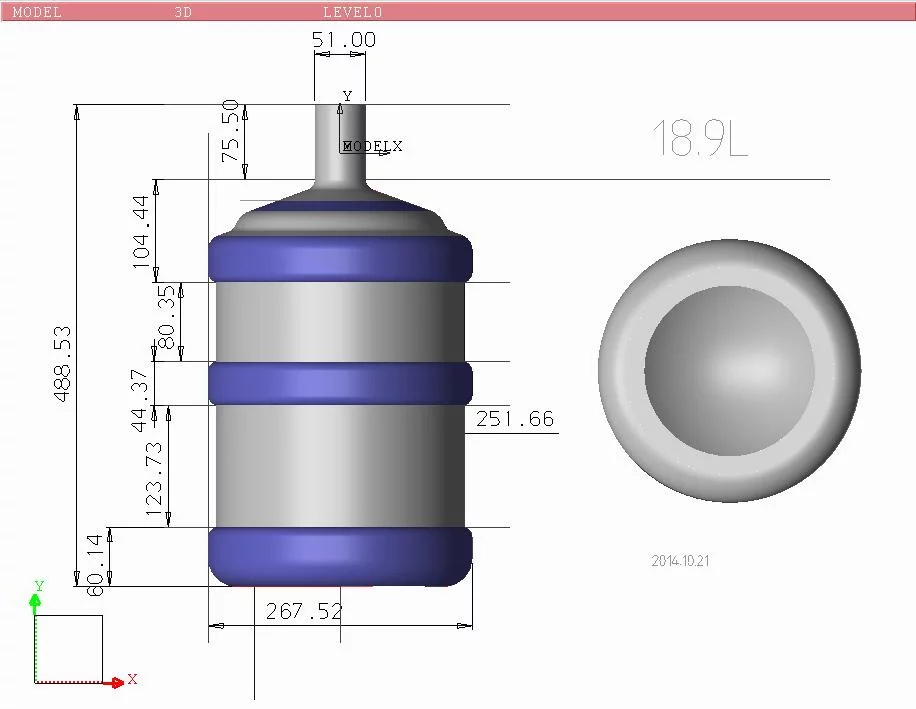

18.9liter-bottle-design-with-one-line_看图王

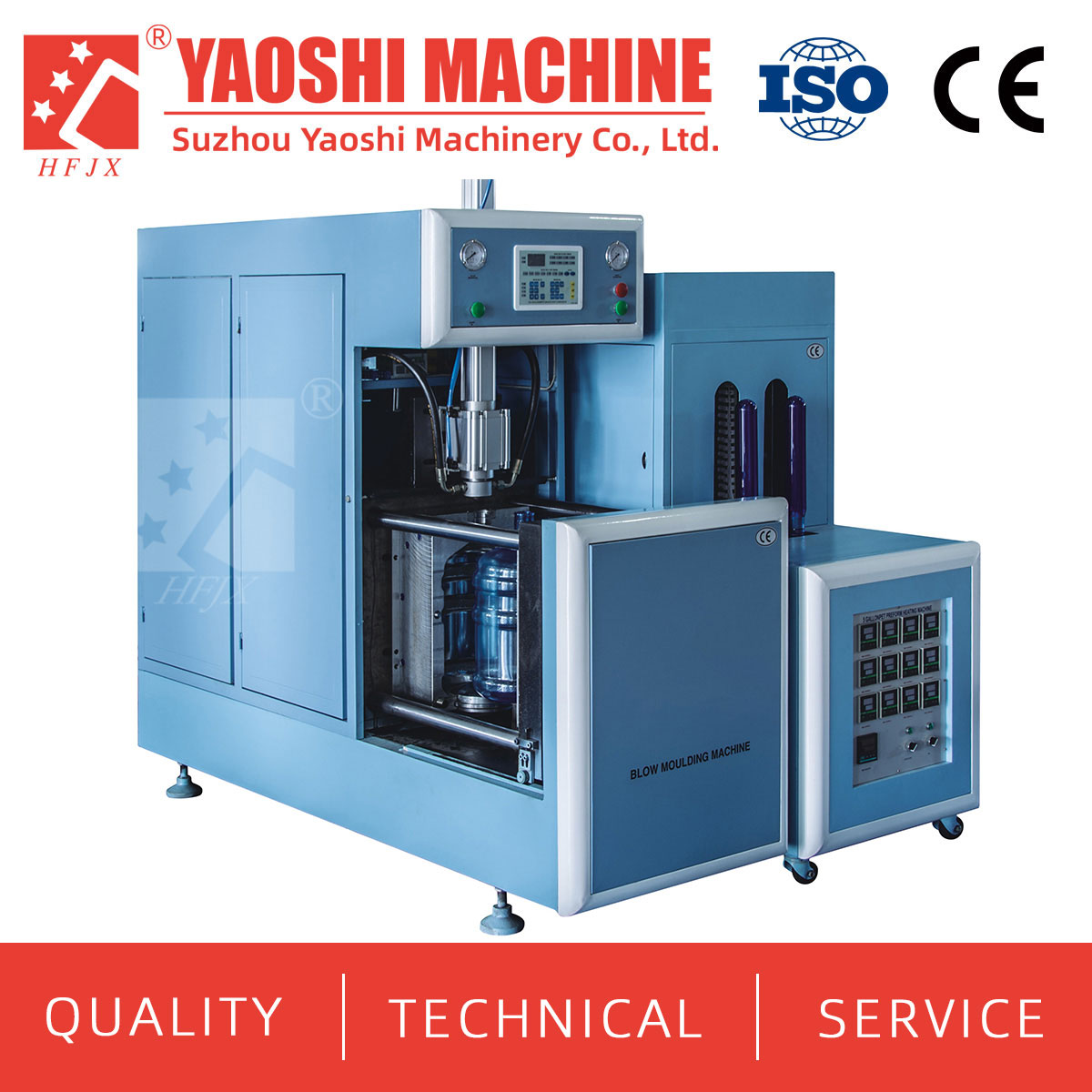

5-gallon-bottle-blowing-machine
-
Q: Are you a trading company or a manufacturer?
A: We are a direct-operated factory located in Zhangjiagang City so we can provide you with high-quality machines at a reasonable price, welcome to visit us.
-
Q: Are all your products produced by yourself or compressed by purchasing other products?
A: We have independent R&D and production teams focusing on manufacturing machines, and we have our own processing center, and all products are manufactured by our technical team.
-
Q: What is the capacity of your factory?
A: About 100+ production lines per year.
-
Q: How about spare parts?
A: We will send one year’s worth of easily damaged spare parts with the machine and ship them together. During the warranty period, we will provide spare parts at a cost including freight.
-
Q: How long does it take to install?
A: According to your machine order, we will send one or two engineers to your factory, which takes about 10 days to 25 days.
-
Q: How to install the machine after it arrives?
A: We will send engineers to your factory to install the machine and train your employees how to operate the machine.
-
Q: When can I get the machine after payment?
A: Usually the production time is about 30-60 days, depending on the type of machine you ordered. The shipping time is subject to your port of destination.
-
Q: If we buy your machine, what is your guarantee or warranty on the quality?
A: We provide you with high-quality machines with a 1-year warranty and lifetime technical support.
