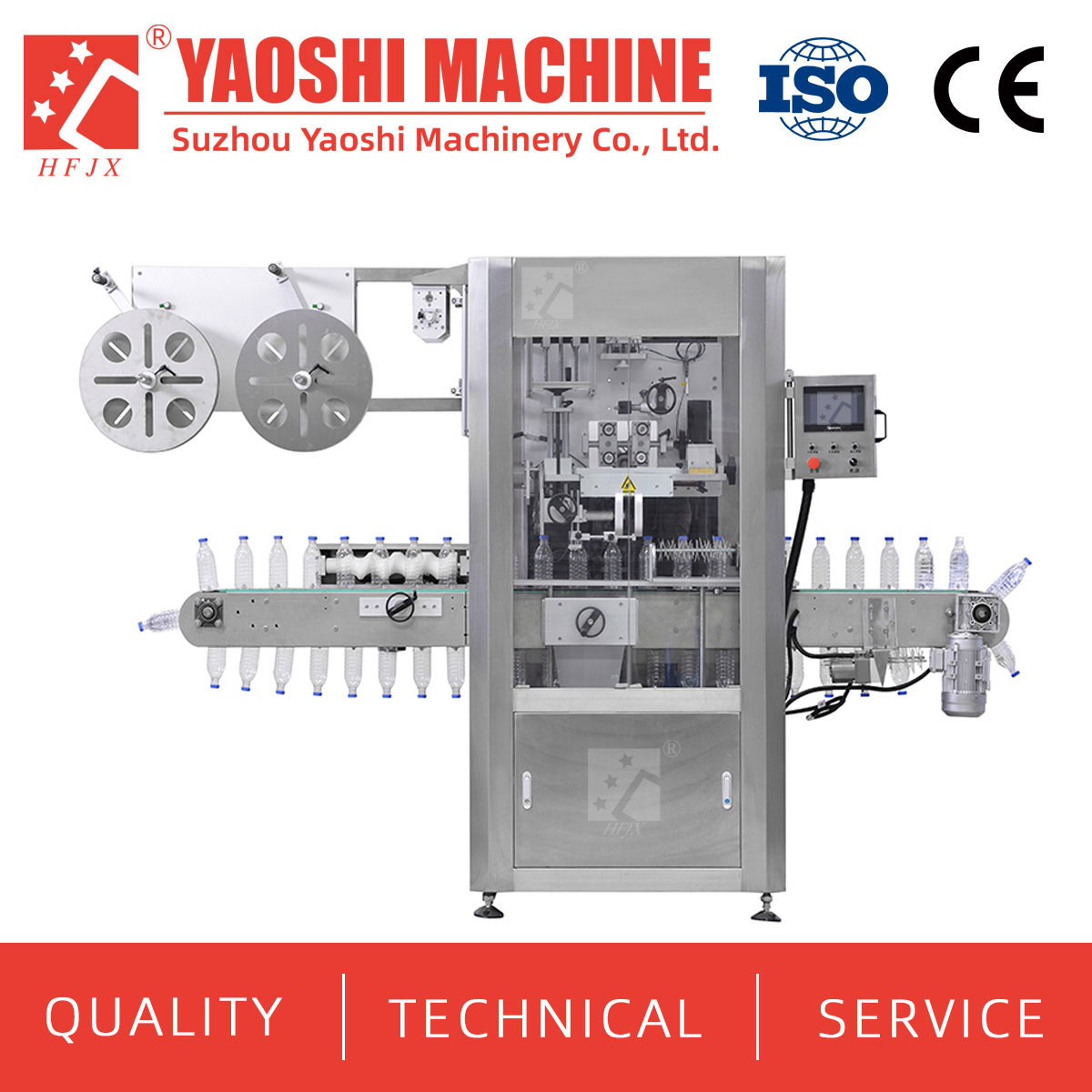

Product Description
Full-cover stainless steel mainframe: the whole machine is waterproof and rust-proof.
Adjustable blade: unique rotary cutting, double-sided blade, long service life.
Single positioning center guide column: more stable label feeding.
Synchronous bottle divider: more stable bottle transmission.
Bottom sleeve label brush: more accurate label removal.
Label control electric eye rack: unique tail and electric eye combination to improve film material cutting accuracy.
Button control cabinet: more user-friendly operation.
Independent feeding rack: the position of the rack can be selected at will.
Electrical configuration specifications:
Using PLC programmable controller, imported servo motor, servo drive, inverter, inverter; using positioning module to ensure accurate, fast and stable label removal.
Applicable bottle type:
Various bottle types, such as: round bottle, square bottle, flat bottle, curved bottle, cup shape, etc.
Specifications
Technical features of OPP hot melt glue labeling machine
1. Automatically cut and label the bottle in a round or semi-circular shape. Automatically melt the glue to label the upper and lower parts, and automatically recycle the glue.
2. Variable speed control system, synchronous automatic detection system, automatic adjustment of production speed, always keep the labeling machine at the best production speed
3. Star wheel separation feeding, high-speed labeling with associated design transmission method, stable accuracy.

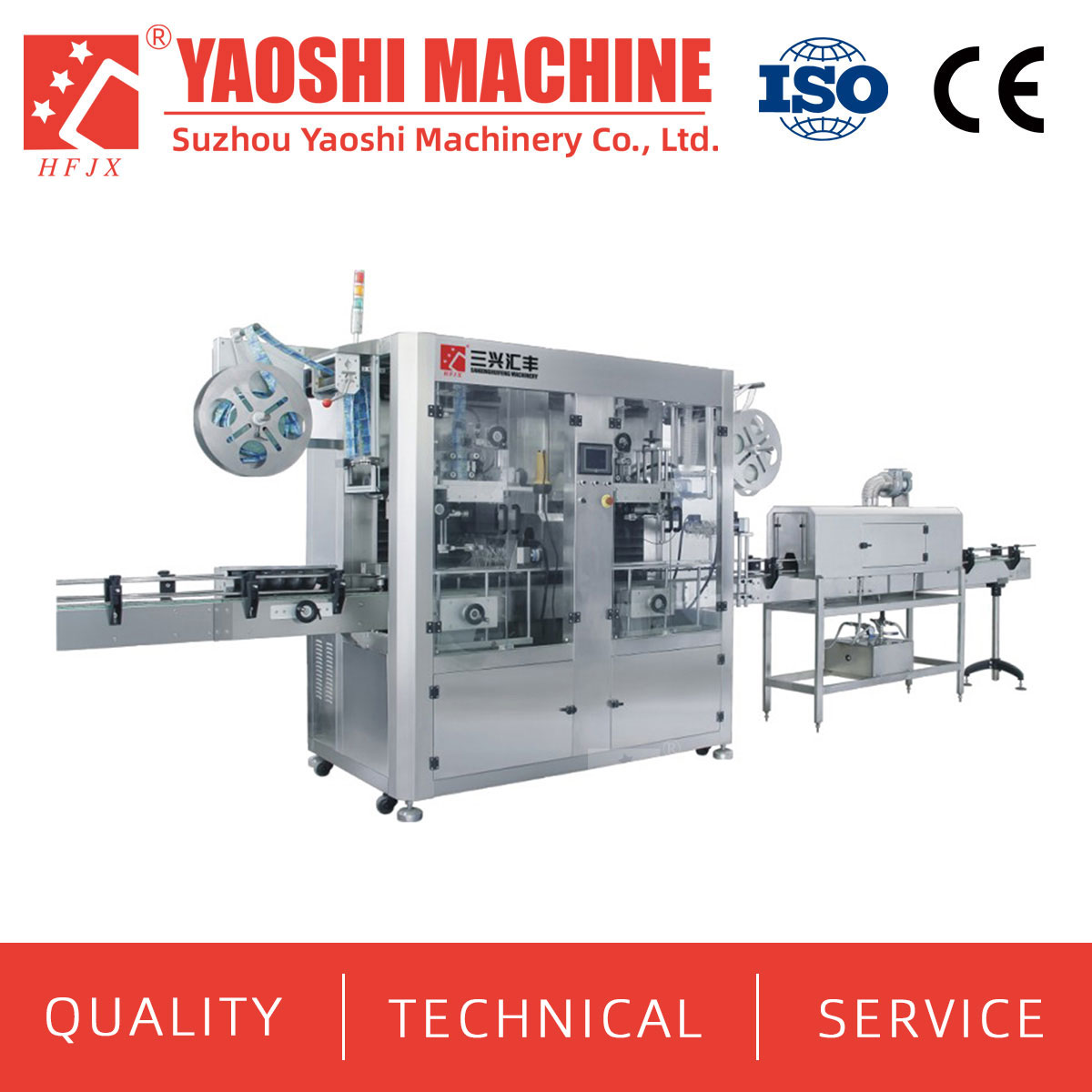

| Model | SLM150 | SLM250 | SLM250D | SLM300 | SLM400 |
| Power supply | 3.0KW | 3.3KW | 6.0KW | 6.0KW | 6.0KW |
| Input voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
| Capacity | 9000BPH | 15000BPH | 15000*2BPH | 18000BPH | 24000BPH |
| Host machine dimension | 2100*850*2000 | 2100*850*2000 | 3200*1100*2070 | 2200*1100*2200 | 2500*1200*2200 |
| Framwork material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Length of label(mm） | 30-260 | 30-260 | 30-260 | 30-260 | 30-260 |
| Thickness of label(mm) | 0.03-0.13 | 0.03-0.13 | 0.03-0.13 | 0.03-0.13 | 0.03-0.13 |
| Diameter of bottle | 28-125 | 28-125 | 28-125 | 28-125 | 28-125 |
| Height of bottle | 50-280 | 50-280 | 50-280 | 50-280 | 50-280 |
| Bottle shape | Round/Square/ | Round/Square/ | Round/Square/ | Round/Square/ | Round/Square/ |
| Flat/Oval | Flat/Oval | Flat/Oval | Flat/Oval | Flat/Oval | |
| Contraction furnace power | 13~15KW(Or steam) | 13~15KW(Or steam) | 13~15KW(Or steam) | 13~15KW(Or steam) | 13~15KW(Or steam) |
Shrink Tunnel
For various irregular bottle shapes such as round bottles, square bottles, flat bottles, etc., the new steam shrinking furnace is easy to adjust and maintain, shrinks evenly, and the low-pressure steam drum is evenly distributed. The steam spraying method adopts seamless pipe design, and the nozzle is divided into three sections for adjustment. The height, position, and steam output of each section can be adjusted separately to achieve the ideal shrinking effect. The whole machine uses stainless steel insulation, which not only saves energy but also meets international safety standards. The stainless steel defrost plate collects condensed water. The whole machine adopts waterproof design, which is easy to operate and has low maintenance cost. Based on the original configuration, a double-layer insulation furnace is manufactured to save energy and protect the environment.
| Input Power Supply of Blower | 1 220VAC 1.1KW |
| Working Pressure | 0.1Mpa |
| Weight | 230Kg |
| Steam Consumption | 10-20Kg/h |
| Size of Oven Body | L2300mm x W400mm x H450mm |
| Transporting Speed | 0-35m/min |
Steam generator
The fully automatic electric heating generator uses a copper high-pressure vortex pump to supply water. The water supply time is short and durable. A liquid level float is installed in the water tank to automatically control the water intake. The working system is fully automatically controlled. After connecting to the water source and power supply, steam can be continuously output in about 5 minutes, with high working efficiency.
| Project | Unit | Specification |
| Steam capacity | kg/hr | 50 |
| Input power | KW | 36 |
| Rated working pressure | Bar | 7 |
| Saturated Steam Temperature | ℃ | 170 |
| Efficiency | / | 98% |
| Power source-Voltage | / | As customer required |
| Main steam valve diameter | DN | 15 |
| Safety valve diameter | DN | 15 |
| Water inlet diameter | DN | 15 |
| Blow down valve caliber | DN | 15 |
| Overall dimension(L*W*H) | mm | 680*600*1060 |
| Weight | Kg | 130 |
| We can provide customized products for specific power supply in the world. | ||
About Suzhou Yaoshi Machinery Co., Ltd.'s factory
After Sales Service
1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.
