Product Description

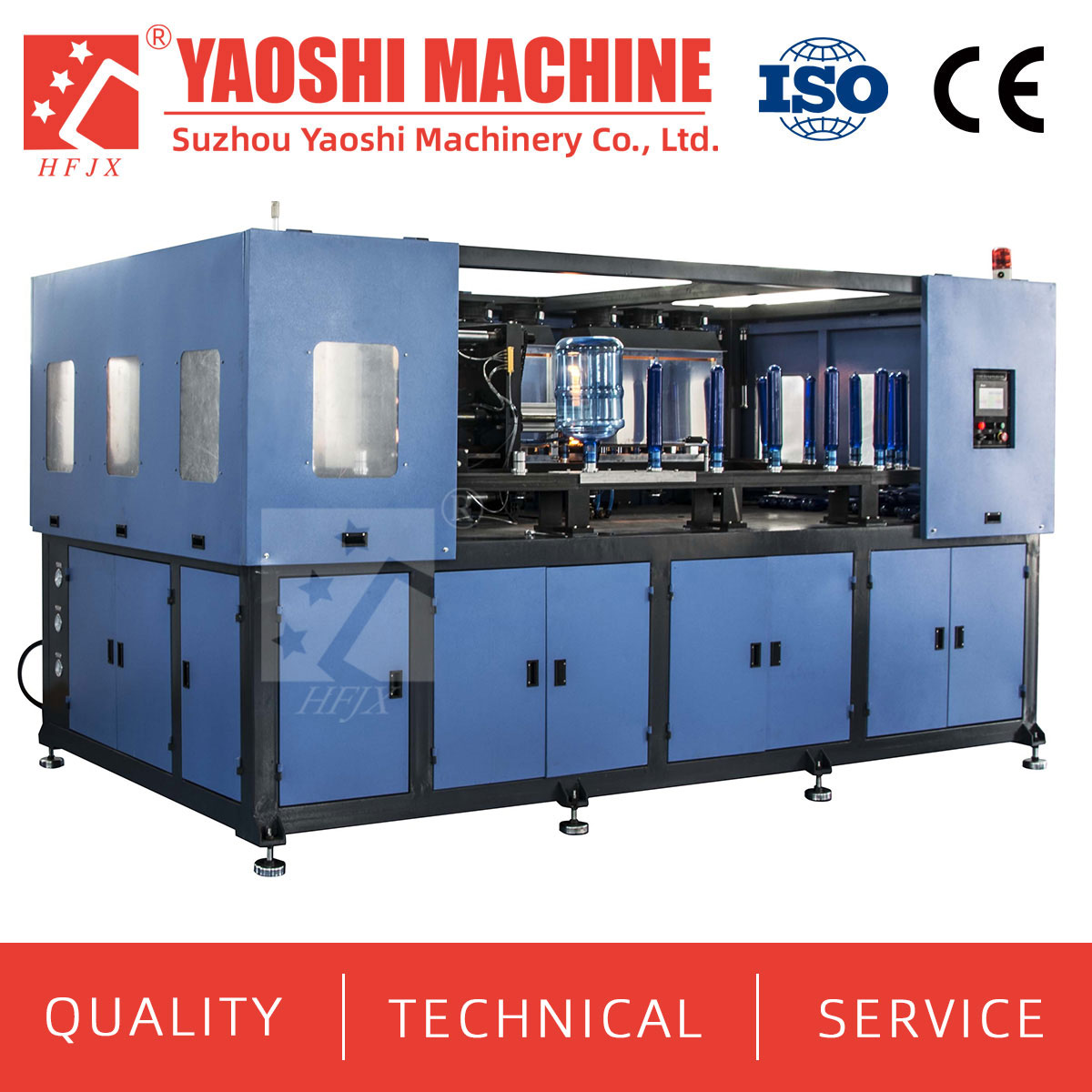

1. Fully automatic design is adopted, that is, the preforms are automatically loaded.
2. The machine is equipped with a bottle conveyor, which can be connected with filling, capping and washing machines.
3. PLC control, can be connected to the Internet,
4. The machine design is very simple, simple means durable and easy to repair
Most 3/5 gallon pet bottles are produced using semi-automatic blow molding machines. But this is the automatic type. It is liked by customers who are not worried about the budget. Its advantage is that it saves labor costs and can be connected with the entire automatic 5 gallon bottled water production line.
Product Detail
Specifications
| Item | measurement | ||
| Material | PET | ||
| Theoratical output | Pcs/hr | 180-200 | |
| Max bottle diameter | mm | 300 | |
| Max bottle height | mm | 490 | |
| Bottle neck size | mm | 55 | |
| Clamping force | mm | 370 | |
| Stretch stroke | mm | 650 | |
| Bottom stroke | mm | 30-70 | |
| Central distance | mm | 220 | |
| Heating power | KW | 45 | |
| Working pressure | Mpa | 0.7 | |
| Blowing pressure | Mpa | 2.5-3.0 | |
| Voltage | 3P 380V/220V 50HZ | ||
| Machine size | mm | 4000*2250*2200 | |
| Machine weight | KG | 3500 | |
