Product Description

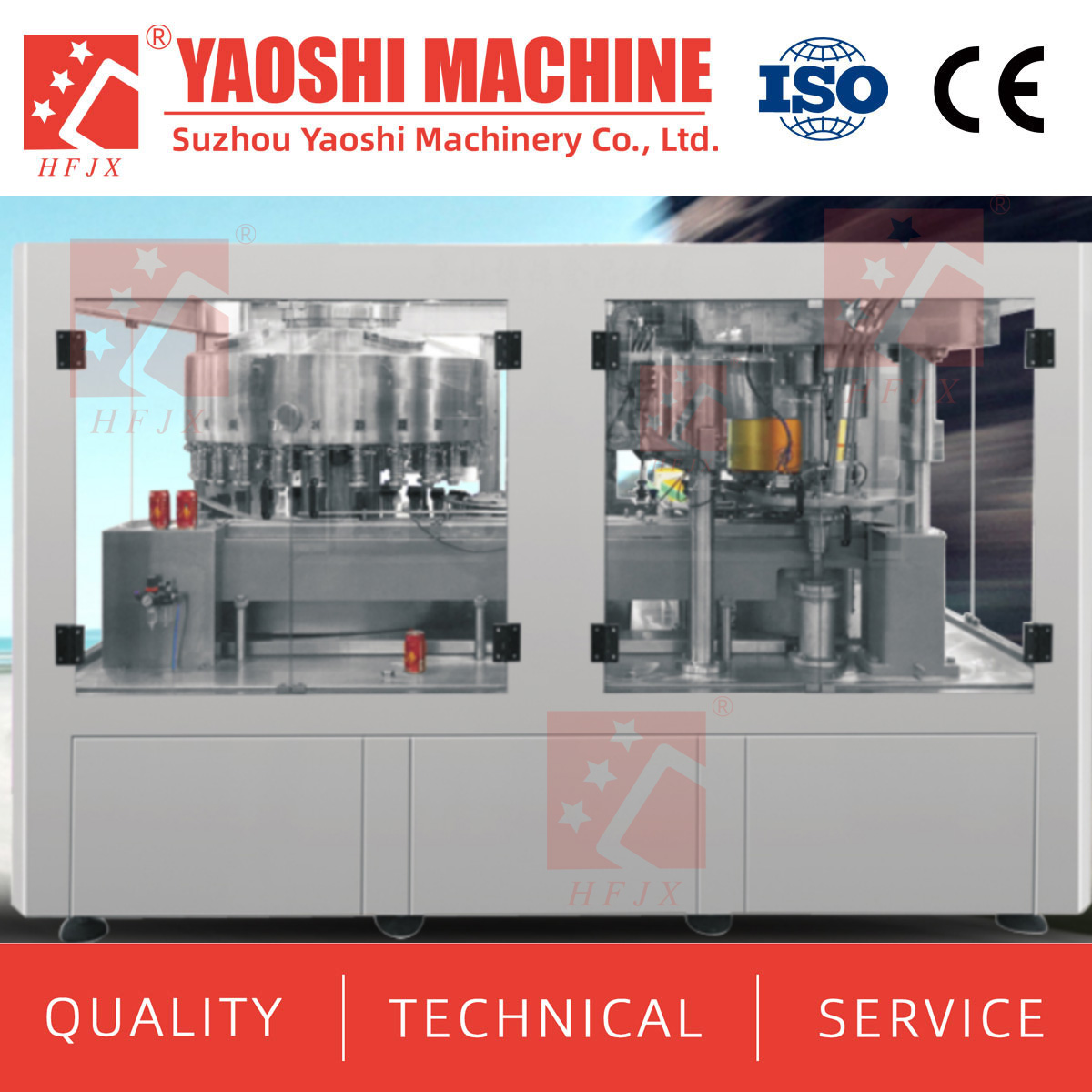

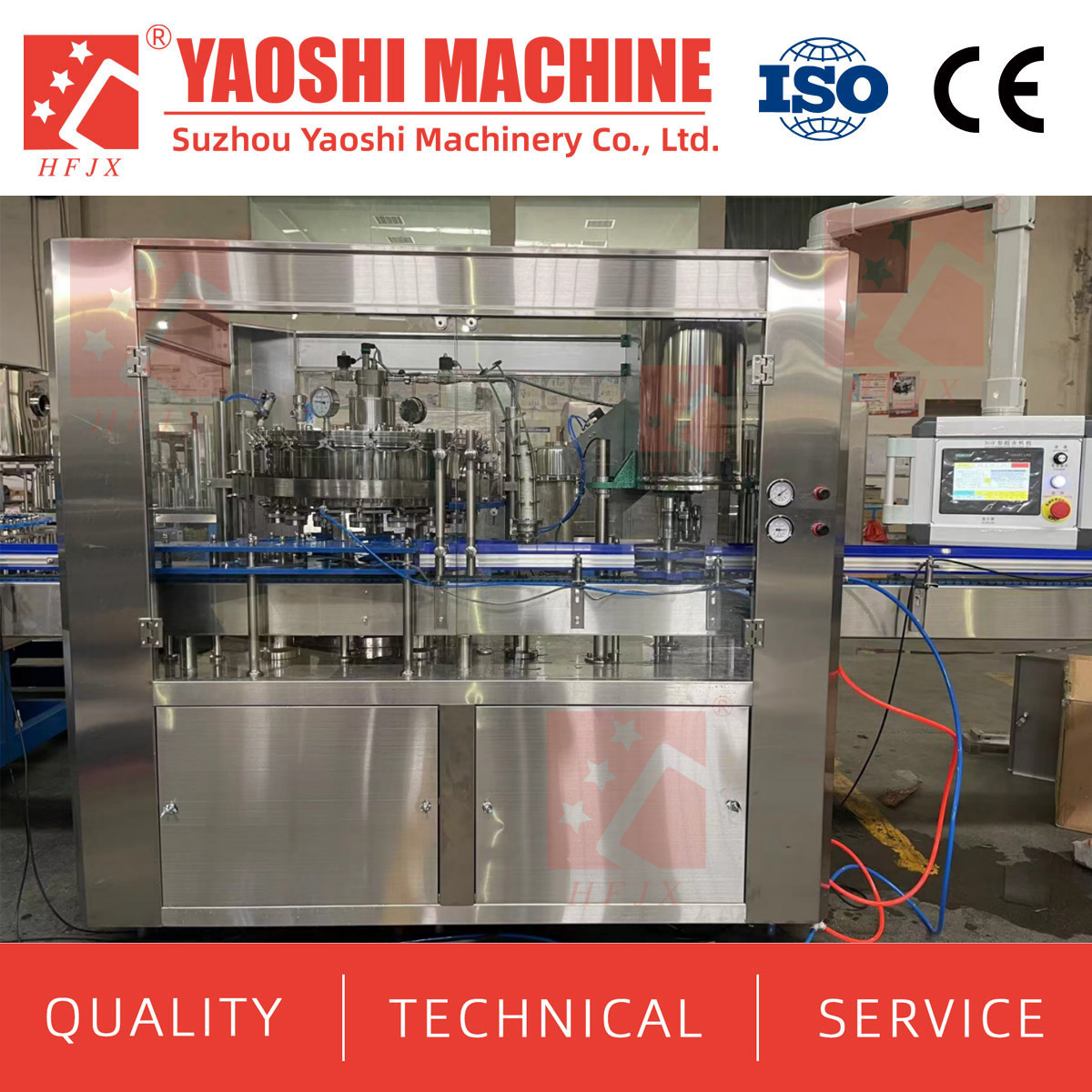

Can filling and sealing machine
Equipment composition
The filling machine is mainly composed of a filling cylinder and a filling valve. After the can body is cleaned, it is sent to the filling machine through the middle star wheel. The star wheel clamps the can body and sends it to the filling machine. The base supports the can body to rotate around the filling machine, the roller opens, and the liquid enters the can body.
Filling principle:
The filler and filling valve of this machine are isobaric filling, with slow speed, high precision, and guaranteed filling volume.
Filling valve
The filling valve is one of the key components of the filling machine. The filling valve consists of a valve core, a valve body, a valve seat, an umbrella-type wide liquid valve, etc.
3.1. When the can body enters the tank seat plate from the middle star wheel, the filling valve drives the valve sleeve, and the valve core moves up accordingly. At this time, the 0-type roller 1 is disengaged from the valve seat and enters the filling area.
3.2. The material continues to move downward until the bottle is filled. When the roller performs cam movement, the filling valve moves upward, and the 0-type roller 1 presses the valve body, so that the material no longer enters the valve cylinder of the valve core.
Sealing Machine
1. Equipment composition
The capping machine consists of a frame, a guide rail, a capping device, a transmission device, etc.
The transmission device of the capping machine is transmitted to the gear by the reducer, and the power is transmitted to the capping head through the hollow main shaft.
The can body does not rotate, and the four small rollers rotate the cap. The cam does not move. The bottle cap is sent into the gear ring of the capping head through the stirring device and the guide rail. When there is a can on the conveyor belt, as the capping head rotates, the cap moves downward and screws the cap on the can mouth.
Specifications
It is the preferred equipment for the medium beer and beverage plant. And we are able to provide the complete pop cans/tin can filling and package solution, from can depalletizer, can rinsing machine, can filling & sealing monoblock machine, leakage check, liquid nitrogen dosing machine, pasteurizer tunnel, blow dryer, carton package, film package system, which is widely used for the beverage, beer, juice industry and so on.
Product Features
Strict Process Requirements for Juice & Tea Beverage Production
The production of juice and tea beverages demands rigorous process controls. Comprehensive analysis of filling technologies—spanning production line operability, beverage quality preservation, and cost efficiency—confirms that the hot filling process offers superior economic viability and reliability. This method requires:
UHT Sterilization & Temperature Control: Liquids must be sterilized via instantaneous ultra-high temperature (UHT) treatment and maintained at 85–95°C throughout filling.
High-Speed High-Temperature Filling: Filling must conclude rapidly to prevent temperature drop, ensuring microbial safety and product integrity.
Full-Mouth Filling: To minimize residual oxygen (critical for "original beverages"), bottles must be filled to the brim, significantly reducing oxidation and extending shelf life.
Integrated Systems for Hot Filling Excellence
To achieve high-temperature filling and full-mouth precision, an automated circulation system is essential. This includes:
Low-Temperature Material Recirculation: Maintains optimal fluid viscosity and temperature uniformity.
CIP (Clean-in-Place) Systems: Ensures hygienic processing and reduces cross-contamination risks.
Suzhou Yaoshi Machinery’s Advanced 4-in-1 Filling Solution
Suzhou Yaoshi Machinery delivers cutting-edge automation for juice production lines, offering hot-filling-compatible equipment with capacities ranging from 2,000 to 36,000 BPH (bottles per hour).
Our flagship 4-in-1 Integrated Filling Machine combines:
Bottle Rinsing → Pulp/Juice Filling → Capping in a single unit.
Automatic Circulation & Temperature Control: Features a return-flow system to sustain filling temperatures and CIP functionality for seamless cleaning.
Adaptability: Adjustable components enable rapid switching between bottle types.
Technical Advantages
Precision Filling: Utilizes micro-negative pressure filling for accuracy (±1mm liquid level).
Material Safety: Constructed with SUS 304 stainless steel for corrosion resistance and compliance with food-grade standards.
Automation: PLC-controlled touchscreen interface (multi-language support) and servo-driven systems ensure operational stability.
Technical Parameter
| Model | XDF12-1 | XDF18-4 | XDF32-6 | XDF40-6 | XDF54-6 |
| Capacity(cans/hour) | 2000 | 8000 | 15000 | 20000 | 30000 |
| Suitable container | Aluminum Can / Tin Can / Plastic Can | ||||
| Can diameter | Dia50 ~dia99mm | ||||
| Can height (mm) | 70-175mm | ||||
| Compressor air | Isobaric filling /normal pressure filling | ||||
| Application | Beverage Can Filling Machine | ||||
| Total power (kw) | 2.4kw | 4.4kw | 6.2kw | 7.2kw | 16kw |
| Overall dimensions | 2.5*1.9m | 2.8*1.9m | 3.2*2.5m | 3.8*2.8m | 3.8*2.8m |
| Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m |
| Weight(kg) | 2500kg | 3200kg | 4500kg | 6500kg | 10000kg |
Main configuration
| No | Name | Brand |
| 1 | Motor | China |
| 2 | Motor in cap sorter | China |
| 3 | Rinsing pump | Nanfang, Hangzhou |
| 4 | Magnetic valve | Airtac, Taiwan |
| 5 | Cylinder | Airtac, Taiwan |
| 6 | Air parts | Airtac, Taiwan |
| 7 | Frequency convertor | Siemens |
| 8 | Transformer | China |
| 9 | Photoelectric switch | AUTONICKS |
| 10 | Proximity switch | AUTONICKS |
| 11 | PLC | Siemens |
| 12 | Touch screen | Siemens |
| 13 | Pnuemtic parts | Airtac, Taiwan |
| 14 | AC contactor | Schneider |
| 15 | Microrelay | Schneider |
Canned beverage and beer production line Flow chart & layout
About Suzhou Yaoshi Machinery Co., Ltd.'s factory
After Sales Service
1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.
