Product Description

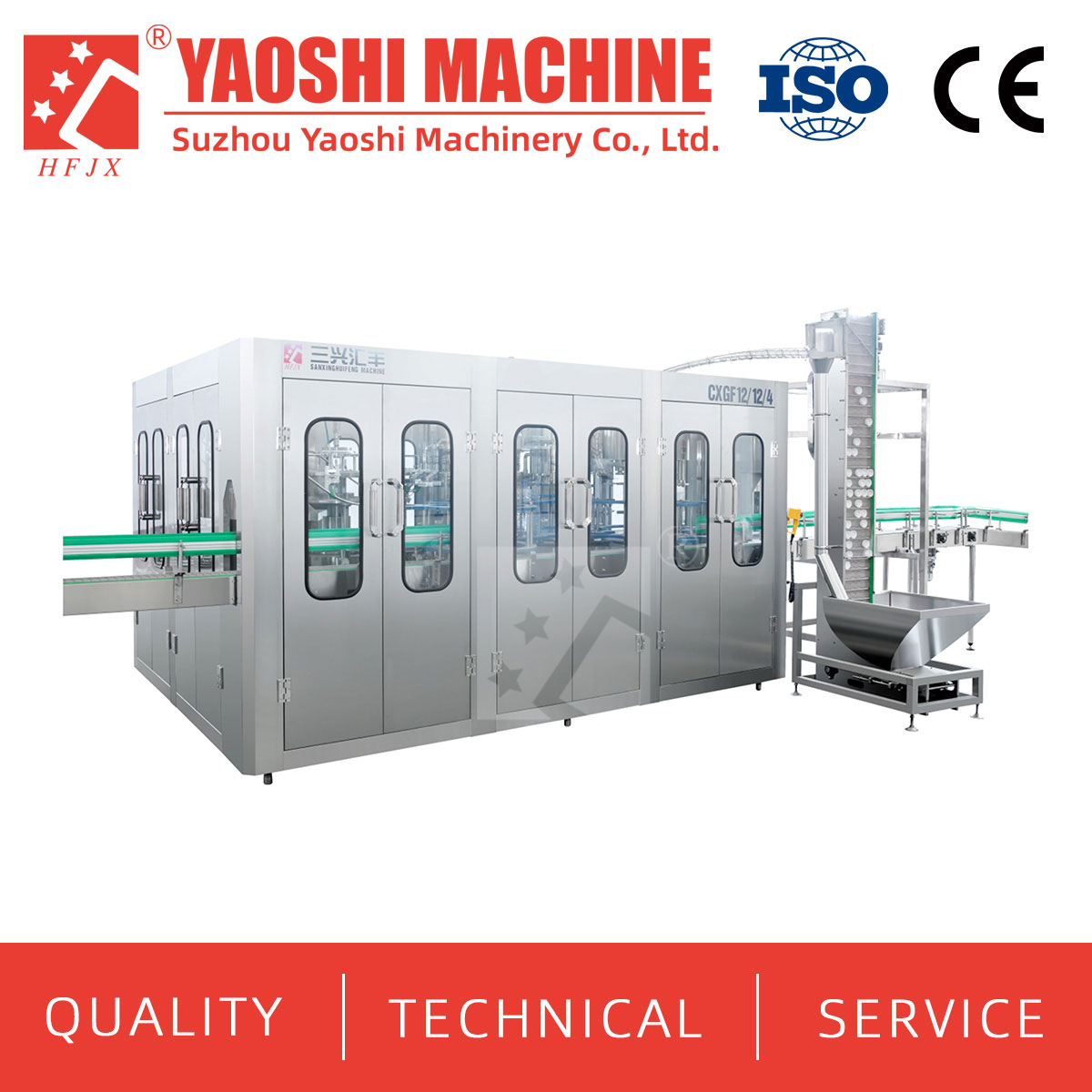

The Yaoshi Machine is specially designed for 5L to 10L big bottled drinking water production. It integrates bottle washing, filling, and capping into one unit. To ensure thorough washing and sterilization, the washing machine uses multi-liquid spray and circulating thimerosal spray. The capping machine automatically caps barrels, equipped with a water spraying device to sterilize and clean caps. This production line can automatically carry out barrel handling, washing, sterilizing, filling, capping, counting, and product discharging. With complete functions, modern design, and a high degree of automation, the suzhou yaoshi Machine barreled water auto production line perfectly integrates mechanical, electrical, and pneumatic technologies.
Specifications
Product Features
1) Compact structure, beautiful shape, easy operation and high degree of automation.
2) The direct contact conveyor belt and bottle feeding dial wheel technology make it simple and quick to change the bottle shape.
3) The bottle neck clamping technology is adopted, and there is no need to change the bottle height. Only the parts related to the bottle diameter, such as the arc guide plate and the dial wheel, need to be replaced.
4) The stainless steel bottle clamp dedicated to the bottle rinser does not touch the threaded part of the bottle mouth to avoid secondary contamination.
5) All parts in direct contact with the medium are made of food-grade stainless steel, without dead corners, and easy to clean.
6) The diaphragm regulating valve controls the liquid inlet flow rate, maintains the liquid level in the liquid barrel slightly disturbed, and ensures the filling accuracy.
7) The feed valve is automatically closed when there is no bottle in the machine to avoid water and material loss.
8) Automatic filling, fast speed, and precise liquid level control.
9) Fast filling speed, large flow, high filling valve accuracy, and precise and lossless liquid level control.
10) Equipped with complete CIP control circuit and on-site programming and cleaning device.
11) The capping head adopts magnetic constant torque device to ensure high quality and no damage to the capping.
12) Adopts efficient capping system and equipped with complete cap feeding protection device.
13) The bottle bottom support plate at the bottle discharge wheel adopts spiral descending type, and there is no need to adjust the bottle feeding height when changing the bottle model.
14) Equipped with a complete overload protection system to effectively protect the equipment and operators.
15) Adopt touch screen to fully realize human-machine dialogue, and the equipment operation status is clear at a glance.
16) The main electrical components such as touch screen, PLC, inverter, etc. are all well-known imported products.
Technical Parameter
| Mode | CXGF8-8-4 | CXGF40-40-10 | CXGF60-60-15 |
| Capacity BPH | 800-1000 | 18000-24000 | 28000-36000 |
| Washing head | 8 | 40 | 60 |
| Filling head | 8 | 40 | 60 |
| Capping head | 4 | 10 | 15 |
| Bottle Size | 5L 6L 8L 10L 12L 15L 20L | ||
| Compressed air pressure(mpa) | 0.3-0.7 | ||
| Total power(kw) | 5.2 | 9.6 | 12 |
| Size (mm) | 3100*2450*2300 | 4550*2650*2300 | 5450*3210*2300 |
| Weight (kg) | 6500 | 8500 | 12000 |
Main configuration
| No | Name | Brand |
| 1 | Motor | China |
| 2 | Motor in cap sorter | China |
| 3 | Rinsing pump | Nanfang, Hangzhou |
| 4 | Magnetic valve | Airtac, Taiwan |
| 5 | Cylinder | Airtac, Taiwan |
| 6 | Air parts | Airtac, Taiwan |
| 7 | Frequency convertor | Siemens |
| 8 | Transformer | China |
| 9 | Photoelectric switch | AUTONICKS |
| 10 | Proximity switch | AUTONICKS |
| 11 | PLC | Siemens |
| 12 | Touch screen | Siemens |
| 13 | Pnuemtic parts | Airtac, Taiwan |
| 14 | AC contactor | Schneider |
| 15 | Microrelay | Schneider |
Flow chart (bottling production line)
A) Bottling production line
PET resin–injection molding machine–blowing machine–PET bottle
B) Water treatment system
Raw water–water pump–quartz sand filter–carbon filter–water softener–reverse osmosis–ultraviolet sterilizer–ozone generator–finished product water tank
C) Filling and packaging part
Blowing machine/bottle unscrambler–air conveyor–washing, filling and capping three-in-one machine–light inspection machine–bottle dryer–date printer–labeling machine–packaging machine–finished product
About Suzhou Yaoshi Machinery Co., Ltd.'s factory
After Sales Service
1. Installation and commissioning: We will arrange experienced technicians to carry out commissioning and trial production, and at the same time make the equipment reach the rated production capacity of the production line.
2. Training: Our company provides technical training for customers. The training content includes equipment structure and maintenance, equipment control and operation. After the training, the buyer’s technicians can master the operation and maintenance, can adjust the process and deal with various faults.
3. We can send you a video of the machine running. You are welcome to visit our factory and see the machine running. Third-party testing agencies are also accepted for inspection.
4. We can design the machine according to your requirements, and at the same time we will give you our professional advice, as you know, we have been in this industry for 30+ years.
5. Well-trained and experienced staff will answer all your inquiries in English and Chinese
6. 12-month warranty and lifetime technical support.
7. Provide good after-sales service, if you have any questions, please contact us. Provide after-sales service, if you have any questions, please contact us.
More Details
CXGF24-24-8 water Filling machine
cxgf32-32-8 Filling valve
cxgf32-32-8 Rinse bottle valve
cxgf32-32-8 Filling machine tanks and valves
cxgf32-32-8 Capping head
-
Q: Are you a trading company or a manufacturer?
A: We are a direct-operated factory located in Zhangjiagang City so we can provide you with high-quality machines at a reasonable price, welcome to visit us.
-
Q: Are all your products produced by yourself or compressed by purchasing other products?
A: We have independent R&D and production teams focusing on manufacturing machines, and we have our own processing center, and all products are manufactured by our technical team.
-
Q: What is the capacity of your factory?
A: About 100+ production lines per year.
-
Q: How about spare parts?
A: We will send one year’s worth of easily damaged spare parts with the machine and ship them together. During the warranty period, we will provide spare parts at a cost including freight.
-
Q: How long does it take to install?
A: According to your machine order, we will send one or two engineers to your factory, which takes about 10 days to 25 days.
-
Q: How to install the machine after it arrives?
A: We will send engineers to your factory to install the machine and train your employees how to operate the machine.
-
Q: When can I get the machine after payment?
A: Usually the production time is about 30-60 days, depending on the type of machine you ordered. The shipping time is subject to your port of destination.
-
Q: If we buy your machine, what is your guarantee or warranty on the quality?
A: We provide you with high-quality machines with a 1-year warranty and lifetime technical support.
